*Removable
*5 Elements high gain
*Strong anti-jamming & directionality
*UHF400-470Mhz
FREE shipping

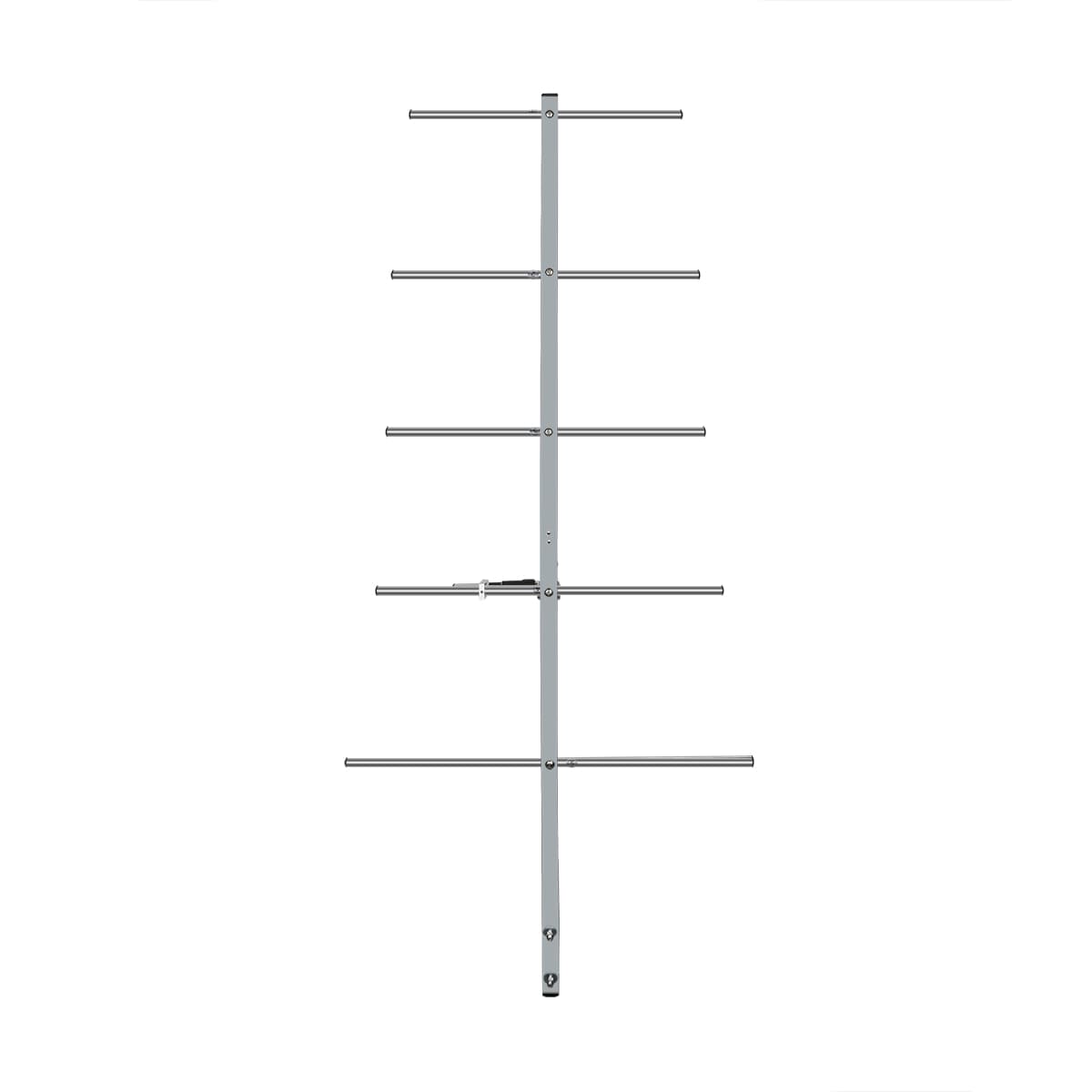

Ailunce AY03 High Gain UHF Yagi Antenna
Description:
- Brand: Ailunce
- Model: AY03
- Frequency: UHF
- Length: 72.5cm/28.5inch
Features:
- 5Elements
- High Gain
- Strong directionality
- Strong anti-jamming
- Realize long distance communication
- Simple construction and easy assembly and disassembly
- Lightweight and sturdy, easy to set up
- High-cost performance
| Electrical Specifications | |
| Frequency Range | 400~470 MHz |
| Bandwidth | 50MHz |
| Impedance | 50Ω |
| VSWR | ＜1.5 |
| Gain | 9 dBi |
| Polarization | Vertical |
| Horizontal 3dB Beam Width | 58° |
| Vertical 3dB Beam Width | 40° |
| Front To Back Ratio | >15 dB |
| Maximum Power Input-watts | 100W |
| Lighting Protection | Direct Ground |
| Connector | SL16.K |
| Mechanical Specifications | |
| Size | 725 x 380x 48mm |
| Mounting hardware | Ø30～Ø40 mm |
| Rated Wind Velocity | 60 m/s |
| Weight | 0.4Kg |
Package Include:
- 1x Ailunce AY03 High Gain Yagi Antenna
