* GPS Function
* Digital and analog
* TDMA designed with Tier II, AMBE++ vocoder
* IP67 waterproof and dust-proof
FREE shipping

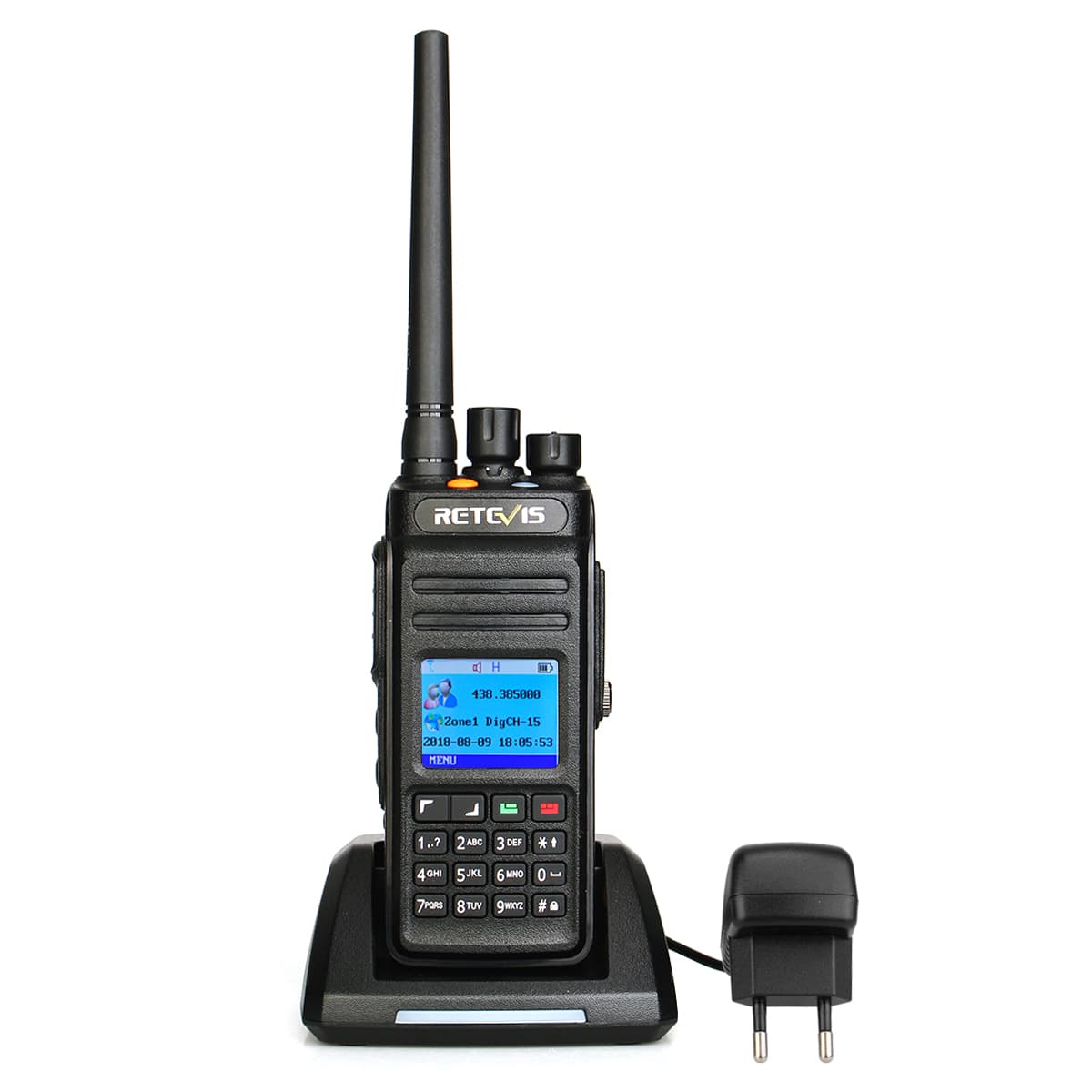

Retevis RT83 10W IP67 Waterproof GPS DMR Radio
Retevis RT83 DMR walkie talkie is a IP67 Waterproof two way radio, with 10W High Power, long talking distance, Retevis RT83 DMR Walkie talkie is a digital and analog radio fit for business security communication.
Features:
digital and analog DMR two way radio.
Retevis RT83 DMR Radio has two modes of digital and analog; compatible with most analog machines and digital machines in the markets; it is also compatible with MOTOTRBO compatible; DMR Tier I and II.
Compatible with the MOTO TRBO series radios
Retevis RT83 DMR Radio Use TDMA technology, designed with Tier II, AMBE++ vocoder, compatible with mototrbo etc. It is compatible with the MOTO TRBO series radios using standard, as well as other makes and models of DMR supported radios. It is also compatible with any two-way radio operating on the supported wide frequencies for easy migration to digital technology.
Longer battery life and transmission distance
Retevis RT83 DMR Radio 2800mAh battery support 250 hours standby time and more then 12 hours use life are enough for your standard work shift:ideal for outdoor adventure activities
Strong audio
Retevis RT83 DMR walkie talkie strong audio allows you to enjoy the clarity and full quieting of digital voice communications.
IP67 waterproof and dust-proof function DMR radios can be used normally after being soaked in 1 meter of water for 30 minutes, allowing you to use them anywhere without worrying about the surrounding environment.
LCD display
Retevis RT83 DMR Radio is equipped with a large clear color LCD display with text; graphics and text messages for convenient use, allows the user to check at a glance on operating status, including battery level, caller identity, etc.
Recording function
you can open the Retevis RT83 DMR Radio recording function; allow you to record enough important call content and listen to each call content repeatedly
Group call match support communication crossing groups; make you call freely without the group restrictions.
Emergency function
When pressed,radio will send out a distress call. Other radios within range will alert with the distress call
Dual time slot direct mode (DCDM)
You can make 2 group calls in one channel with this function when you are under direct model.
1024channels and 64zone(max 16 channels Per Zone)
1024channels and 64zone allow you have more options of communicating
VOX Hand free
Allow you to use your two way radio "hands-free". The radio will automatically begin transmitting when you speak
Secure function
Support comunication crossing groups You can make more free call without group restrictions
Main feature:
- GPS function
- Digital and analog mode
- 2 slot TDMA
- 2 time slot direct mode (DCDM)
- Single/group/all call
- High/Low power selectable
- Digital encryption
- Scan function
- Message function
-
Package Includes:
- 1 x Retevis RT83 DMR Walkie Talkie
- 2 x Antenna
- 1 x Adapter
- 1 x Charger
- 1 x Belt clip
- 1 x User manual
General | |
Frequency range | 400-470MHz |
Channel capacity | 1024 channels |
Channel spacing | 12.5KHz |
Working voltage | 7.4V |
Battery capacity | 2800mAh(Li-ion) |
Working temperature | -40℃- +85℃ |
Antenna impedance | 50Ω |
Audio output power | ≤1000mw@16 |
Dimension | 148*56*39mm |
Receive | |
Analog sensibility | 0.35uV/-116dbm(20db SINDA) 0.22uV/-120dbm(type) |
Digital sensibility | 0.3uV/-117.4dbm (BER5%)0.7uV/-110dbm (BER1%) |
Common channel Rej ection | ≥-12dB |
Adj acent channel selectivity | TIA603C:65dB ETSI:60dB |
Spurious response | TIA603C:75dB ETSI:70dB |
Audio power | 1W |
Audio response | 1db- -3db |
Rated audio distortion | ≤3% |
Transmitter | |
Output power | 10W/4W |
Frequency stability | ±1.0ppm |
Adjacent channel power | ≤-60dbm |
Free time slot power | TDMA:≤-57dBm |
FM modulation mode | 12.5KHz:11K0F3E |
Modulation deviation | 2.5KHz:@12.5KHz |
Nonactive slot power | -57dBm |
4FSK digital mode | 12.5KHz(date only):7K60FXD12.5KHz(date +voice):7K60FXE |
Modulation BER | ≤5% |
Vocoder type | AMBE++ |
