*Mobile piggyback
*Flexible IP networking
*Powerful scheduling management
*Analog/digital back to back
FREE shipping

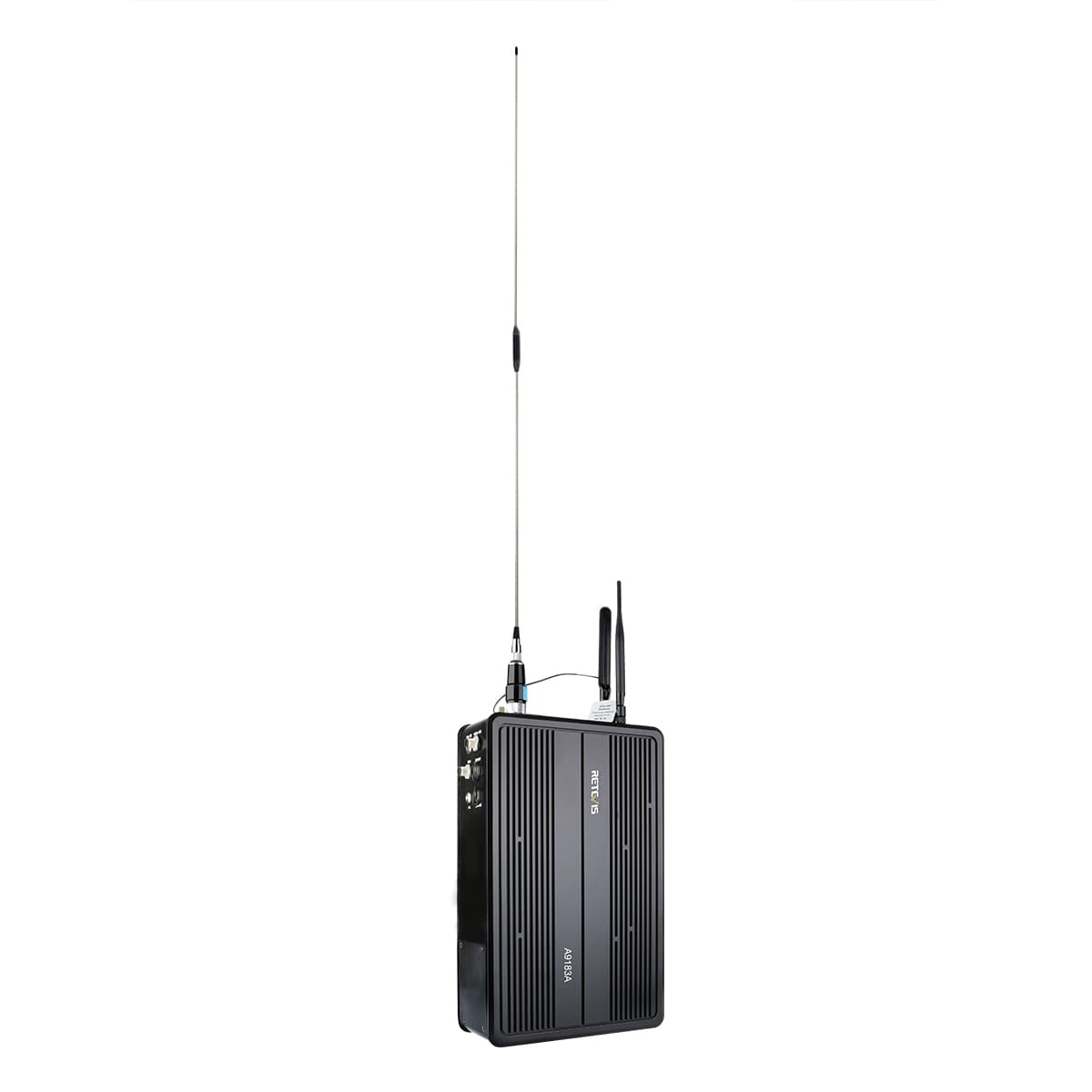

Retevis RT93 Mobile Piggyback DMR Network Repeater
4G, GPS, WIFI, and 450MHz Antenna, IP Networking, 1024 Channel, Retevis RT93 Piggyback DMR Network Repeater easy to carry, easy to install, can be used for long-distance communication in emergency rescue, outdoor, business, etc., to extend the call distance of handheld walkie-talkies and mobile radios.
Retevis RT93 repeater Main Features:
The intuitive status panel: The host panel comes with various status indicators and interface identifiers, which is very User-friendly.
Dual time slot channel: Support standard DMR dual-slot working mode.
Channels supported: Up to 1024 channel switching with PC tools.
Adjustable transmit power: The transmit power can be adjusted according to actual needs, from 1 to 25 watts.
Flexible IP networking: The device is connected in an IP interconnection mode, and supports wired access mode or wireless access modes such as WIFI, 3G/4G, and satellite communication to implement voice and data communication.
Powerful scheduling management: The scheduling platform can implement scheduling management functions such as device management, terminal management, group logical allocation, and voice scheduling.
Analog/digital back to back: The back-to-back solution enables analog and digital walkie-talkies to interoperate in different modes of operation, ensuring a smooth transition of analog users to numbers.
Package include:
1 x Retevis RT93 piggyback repeater
1 x Backpack
1 x 450MHz antenna
1 x 4G Antenna
1 x GPS antenna
1 x WIFI antenna
1 x Power cable
1 x User Manual
Retevis RT92 repeater Technical parameters:
Transmitter | |
Output power | 1~25WContinuous adjustable |
FM modulation Mode | 11KOF3E 12.5KHz |
14KOF3E 20KHz | |
16KOF3E 25KHz | |
4FSK digital modulation | 12.5KHz |
Only data:7K60FXD | |
Data and voice | |
Transmit Spurious | -36dBm<1GHz |
-30dBm>1GHz | |
Modulation limit | ±2.5KHz 12.5KHz |
±4KHz 20KHz | |
±5KHz 25KHz | |
FM Noise | 40dB 12.5KHz |
43dB 20KHz | |
45dB 25KHz | |
Adjacent Power | 60dB 12.5KHz |
70dB 20/25KHz | |
Audio Response | +1~-3dB |
Audio distortion | ≤3% |
Digital voice encoder | AMBE++/SELP |
Digital Protocol | ETSI-TS102 361-1,2&3 |
Receiver | ||
Sensitivity | Analog | 0.3μV(12dB SINAD) |
0.22μV(Typical)(12dB SINAD) | ||
0.3μV(20dB SINAD) | ||
Digital | 0.3μV/BER5% | |
Adjacent channel selectivity | TIA603 | 65dB 12.5KHz/75dB 20/25KHz |
ETSI | 60dB 12.5KHz/70dB 20/25KHz | |
Intermediation | TIA603 | 75dB 12.5/20/25KHz |
ETSI | 70dB 12.5/20/25KHz | |
Spurious Response | TIA603 | 75dB 12.5/20/25KHz |
ETSI | ≥70dB 12.5/20/25KHz | |
Block | TIA603 | 90dB |
ETSI | 90dB84dB | |
Signal-to-noise | 40dB 12.5KHz | |
43dB 20KHz | ||
45dB 25KHz | ||
Audio Distortion | ≤3% | |
Audio response | +1~-3dB | |
Conducted emission | ≤-57dB |
