Cheap Long Range Radio Solution Set
Up to 10KM Long Range Radio Solution Set, mini handheld walkie Talkie and mini repeater, This cheap radio solution set makes your business have long talking distance.
Features:
Retevis RT22 mini handheld walkie talkie
2W mini handheld walkie talkie, small appearance, ultra-thin body, unique appearance design, even when the repeater is not used, the call distance can reach about 2.5km, plus the use of the Retevis RT97 repeater set, the 2W retevis RT22 license-free walkie talkie can easily reach the call distance of 10km, from 2.5km to 10km, this is the subversion of the distance definition of the walkie talkie by retevis solution.
High-Quality Repeater
Retevis RT97 repeater with mini appearance can be placed in any corner without affecting the overall layout. Simple internal structure, complete structure, safe and efficient, make the handheld walkie talkie get longer calling distance.
Complete Radio Solution Set
This radio solution set comes with an antenna and 15m Pure Copper feeder cable, can use directly for the Retevis RT97 repeater, is easy to install, and easy to operate.

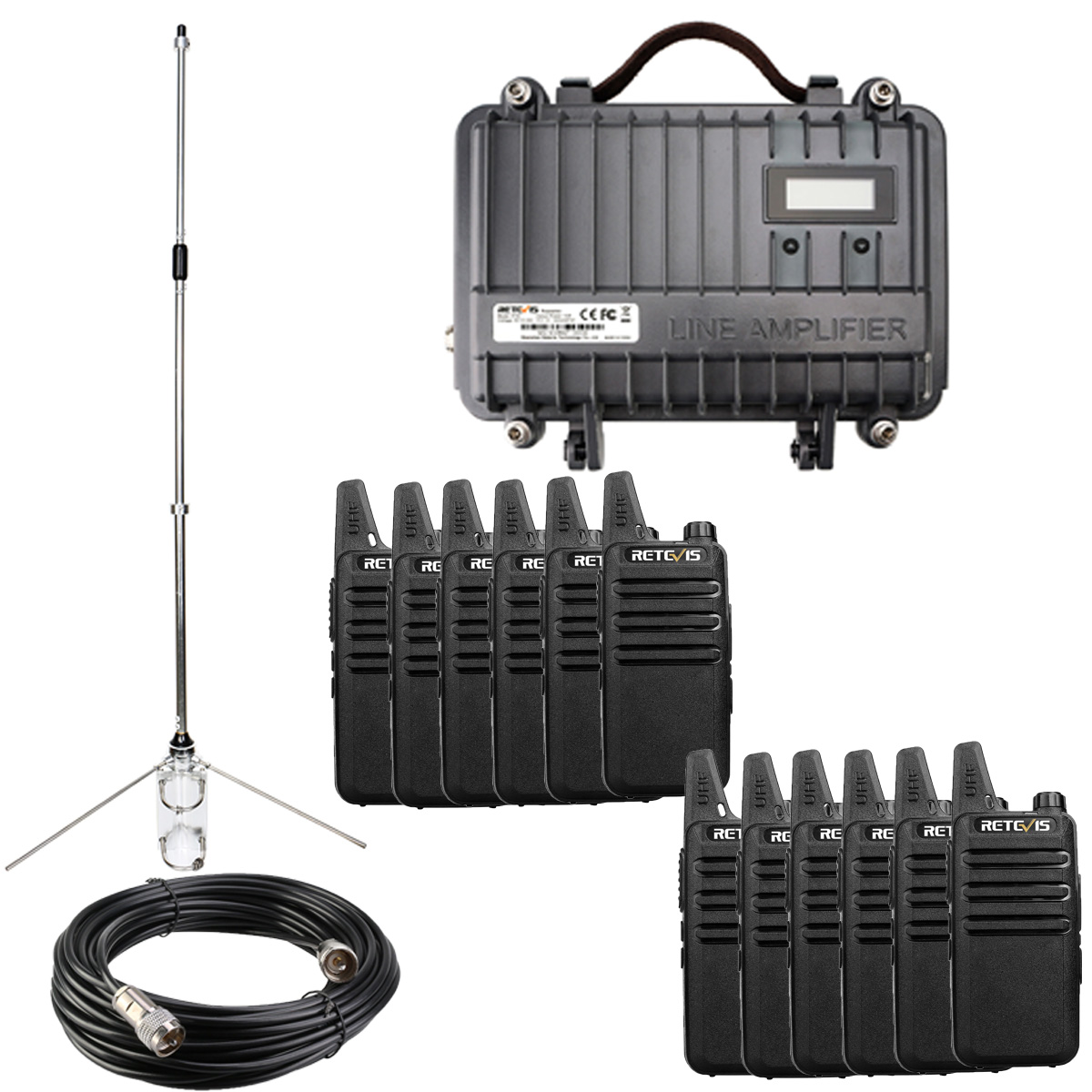

Package Include:
- 1 x Retevis RT97 Repeater
- 12 x Retevis RT22 walkie talkie
- 1 x Omni-Directional Base Station Antenna
- 1 x 15m cable
Retevis RT97 Technical parameters:
| Specifications |
| Frequency Range |
400-470MHz |
| Channel Capacity |
16CH |
| Channel Spacing |
±12.5KHz Narrow/±25kHz Wide |
| Operating Voltage |
DC12V ~24V |
| Operating Temperature |
-30°C~ +60°C |
| Frequency Stability |
±2.5ppm |
| Antenna Impedance |
50Ω |
| Dimension |
260*210*70mm |
| Weight |
1.66kg |
| Transmitter |
| Intermediate Frequency |
465MHz |
| Power Output |
10W |
| Modulation |
F3E |
| Spurious Emission |
-60dB or less |
| Maximum Frequency Deviation |
Wide: ±5kHz Narrow: ±2.5kHz |
| Audio Distortion |
5% or less |
| FM Noise |
Wide:≤45dB Narrow :≤40dB |
| Receiver |
| Intermediate Frequency |
455MHz |
| Sensitivity(12dB SINAD) |
0.2μV (Wide) 0.25μV (Narrow) |
| Squelch Sensitivity |
0.15μV (Wide) 0.2μV (Narrow) |
| Adjacent Channel Selectivity |
≥ 70dB (Wide) / ≥65dB (Narrow) |
| Intermodulation |
≥ 55dB |
| Spurious Rejection |
≥ 55dB |
| Image Rejection |
≥ 55dB |
| FM Ham and Noise |
≤-45dB(Wide) / ≤ -40dB(Narrow) |
| Modulation Type |
F3E |
| Operating Bandwidth |
≤±7KHz / ≤±5KHz |
| Audio Distortion |
≤ 5% |
Retevis RT22 handheld walkie talkie Technical parameters:
| General |
| Model Number |
RT22 |
| Frequency Range |
462-467MHz |
| Power |
2W |
| Channel Capacity |
16 |
| Battery Capacity |
Li-ion 1000mAh |
| Working Voltage |
DC 3.7V |
| Antenna Impendence |
50Ω |
| Weight (Include battery) |
113g/3.99oz |
| Size |
135x54x21mm/5.31x2.13x0.83in |
| Transmitter |
| Output Power |
2W/1W |
| The Maximum Deviation |
≤5KHz |
| Residual Radiation |
<60dB |
| Current |
≤1000mA |
| Audio Response |
+7~-12.5dB |
| Receiver |
| Sensitivity |
≤0.16μV(12dB SINAD) |
| Squelch Sensitivity |
<0.2μV |
| Intermodulation |
50dB |
| Audio Power |
≥300mW |
| Current |
≤100mA |
| Squelch Current |
20mA |
Aluminum Alloy Omni-Directional Antenna Specification:
| Brand |
Retevis |
| Model |
MA01 |
| Color |
Silvery White |
| Frequency |
390-470MHz |
| Gain |
4dBi |
| Support Power |
100W |
| S.W.R |
<1.2 |
| Element |
3 |
| Length |
45.7inch(116cm) |
| Weight |
0.748kg |
Retevis 50-3 Pure Cupper Low Loss Coaxial Extend Cable 15 Meter
Super Gainer Low Loss Coaxial Cable
Suitable for Retevis RT97 repeater
Material: pure copper
Impedance: 50Ω
Return loss: VHF≥20dB UHF≥15dB
Connector plug: SL16
Cable diameter: 5mm / 0.2inch
Cable Length: 15 meter
Note:If the 15m cable length can't meet your needs,welcome to tell us your requirement,we supply customize length service.
