1.ip67 waterproof and dustproof
2.3200 mAh large battery
3.Support type-c charging
3. Digital mode and analog mode compatible
4.Best ham radio
Retevis Ailunce HD1 IP67 FPP Dual Band Dual Time Slot DMR Ham Radio
Update with Type-C charger cable
Retevis Ailunce HD1 IP67 Dual Band DMR Ham Radio is an ideal choice for amateur radio enthusiasts who are looking for a reliable and rugged piece of equipment. It offers dual band operation, with an IP67 rating for dust and water protection. The radio offers a loud and clear sound, as well as a wide range of features for a variety of ham radio activities. Get the most out of your DMR experience with this Retevis HD1 Ham Radio.
Digital and Analog Modes
Supports both digital and analog modes, compatible with existing analog systems, users can gradually switch analog terminal settings according to budget and actual communication needs.
Large Channel and Contacts Capacity
Dual time slot for point to point supports two group calls in one channel under direct model; Up 3000 Channels and 200,000 Contacts.

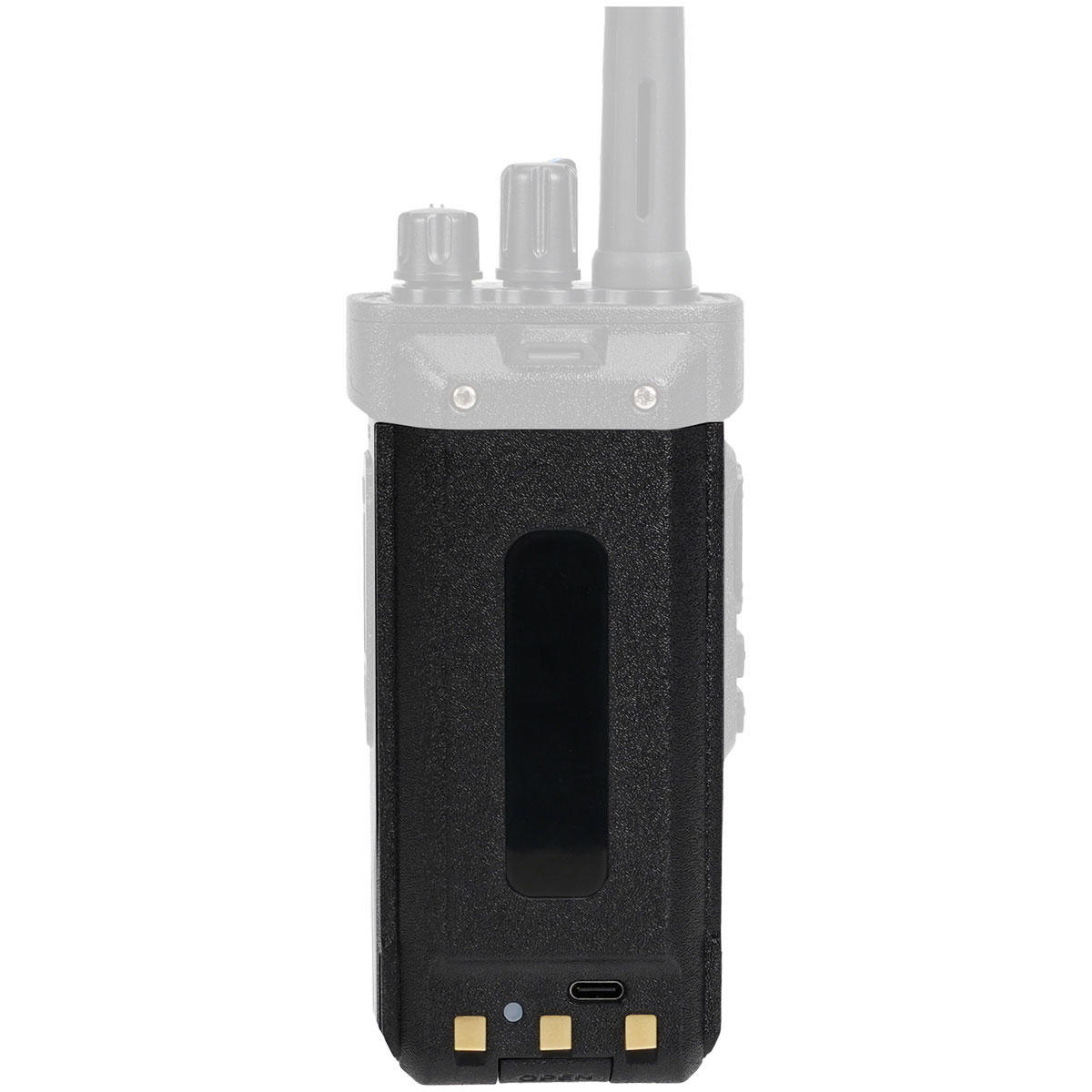

3200 mAh Large Battery Capacity
Come with 3200mAh large battery, enable normal use 7-day Standby Time / Working time up12-16 hours.
Built-in GPS
HD1 (GPS Version) has GPS positioning function, GPS function gives you latlong; altitude; bearing; and speed information SMS function support to text the information to another radio with the same DNA protocol. In the event of an emergency, GPS can be used to locate the team's location for emergency rescue.
IP67 Waterproof
HD1 can be immersed in 1 meter of the water for 30 minutes，waterproof and dustproof function, can be used in rainy and snowy weather, very suitable for outdoor skiing activities.
HD1 Package
- 1 x AILUNCE HD1 DMR Radio
- 1 x 3200mAh Type-C Rechargeable Battery
- 1 x Type-C Desktop Charger
- 1 x Type-C Charging Cable
- 1 x Antenna
- 1 x Belt Clip
- 1 x Sling
- 1 x Adapter
- 1 x English Manual
|
General specifications |
|
|
Frequency |
136-174&400-480MHz |
|
Channels |
3000 |
|
Operating Temperature |
-30℃~+60℃ |
|
Input |
7.4V 2.5A Max |
|
Dimension |
150×64×40mm |
|
Weight |
360g (with battery) |
|
Battery Type |
Li-ion |
|
Battery Capacity |
3200mAh |
|
Battery Charging Input |
5V1A |
|
Antenna Impedance |
50Ω |
|
Transmitter |
|
|
Power |
UHF:8w:4w:1w |
|
Transmit current |
Analog≤1.6A Digital≤0.9A |
|
Frequency Stability |
±1.0ppm |
|
FM modulation mode |
12.5KHz 11K0F3E |
|
4FSK digital mode |
12.5KHz(data only): 7K60FXD |
|
Modulation distortion |
＜5% |
|
Vocoder |
AMBE+2TM |
|
Adjacent channel power |
60dBm 12.5KHz |
|
Audio Response |
+1~-3dB |
|
Digital Protocol |
ETSI-TS102 361-1,-2,-3 |
|
Receiver |
|
|
Analog Sensibility |
0.35uV/-116dBm(20dB SINDA) |
|
Digital Sensibility |
0.30uV/-117dBm(BER 5%) |
|
Adjacent Channel Selectivity |
TIA603C:65dB ETSI: 60dB |
|
Spurious Response |
TIA603C: 75dB ETSI:70dB |
|
Audio Response |
+1~-3dB |
|
Rated Audio Distortion |
≤3% (Type) |
|
Audio Power |
≥500mW |
General Specifications:
GPS Function: Gives you lat long, altitude, bearing, and speed Support to text the information to another radio with the same DMR protocol.
VFO mode: Supports VFO and Channel model switch easily via EXIT key.
Group call match: Call freely without group restrictions.
Dual time slot: Supports Dual time slot and point to point
ID Setting: Supports save and edit radio ID via keypad FM Function: Support receive signal from other radios when you listening radio
Dual Band DMR Radio
Analog and Digital Combined
Compatible with Motorola Tier Ⅰ&Ⅱ
200000 Contacts
1000 Priority Contacts
Dual Time Slot for Point to Point
Firmware Upgrade-able
IP67 Waterproof
Scan:Time/Search/Carrier
Lone Worker
Single/Group/All call
Remote kill/stun/activate
Color LCD Display
Transmit/Transceiver interruption
CTCSS/DCS
Analog Monitor
Comply with Digital Protocol ETSI TS 102 361-1,-2,-3
VOX
TOT
Talk around
Squelch
Keypad Lock
LED Indicator
Password Lock
Battery Save
Voice Annunciation
