Car radio solution system from retevis radio solutions

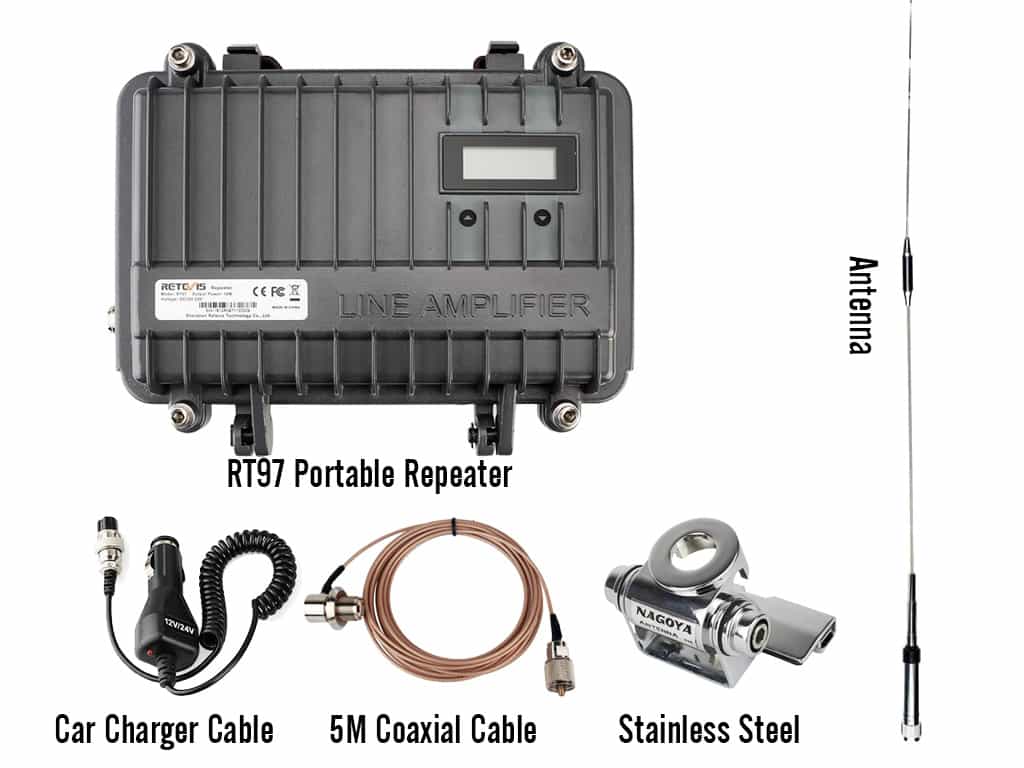

Car radio solution system is widely used in motorcades, travel, communication between travel friends, etc. If we want to suggest a complete Car radio solution system, we need to prepare the following products:

1.RT97 Portable Repeater
2.5M Coaxial Cable
3.Stainless Steel Mobile Radio Antenna
4.Mobile Car Vehicle Antenna Mount Bracket
5.Car Charger Cable

Install power and host

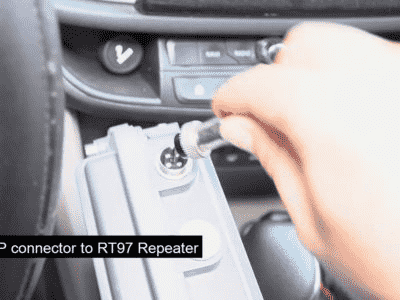

Car Power,Take power from the car cigarette lighter. Connect 4P connector to Retevis RT97 Repeater.

Mounting bracket and antenna

Mobile Car Vehicle Antenna Mount Bracket. The structure is very flexible, can be installed on almost all models. And the installation is also very convenient. Loosen the clamp screw. Remove the wear pad. Screw into the car, the bracket is buckled to the edge of the door. Install anti-wear gaskets. Tighten the screws. After the bracket is fixed, the antenna is installed. Install the Connector socket to the bracket. The antenna is mounted to the base. Correct antenna position, tighten the screws to complete.

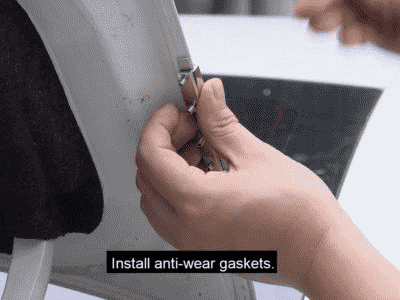

Install anti-wear gaskets

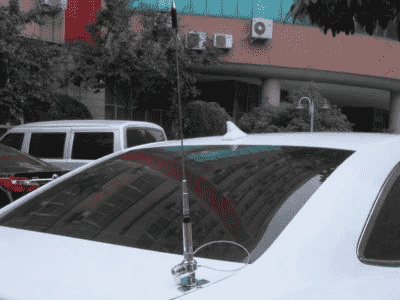

Install antenna

Turn on the car power system, the transfer station is turned on normally. After the car is turned off, the transfer station is also closed.

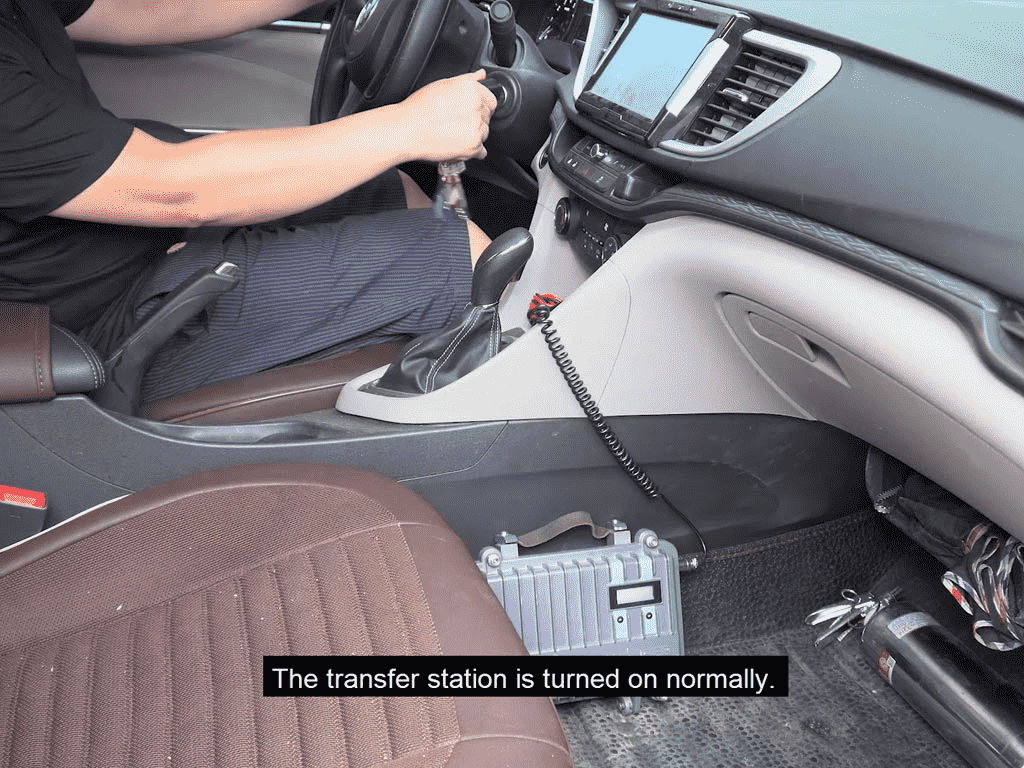

The transfer station is turned on normally

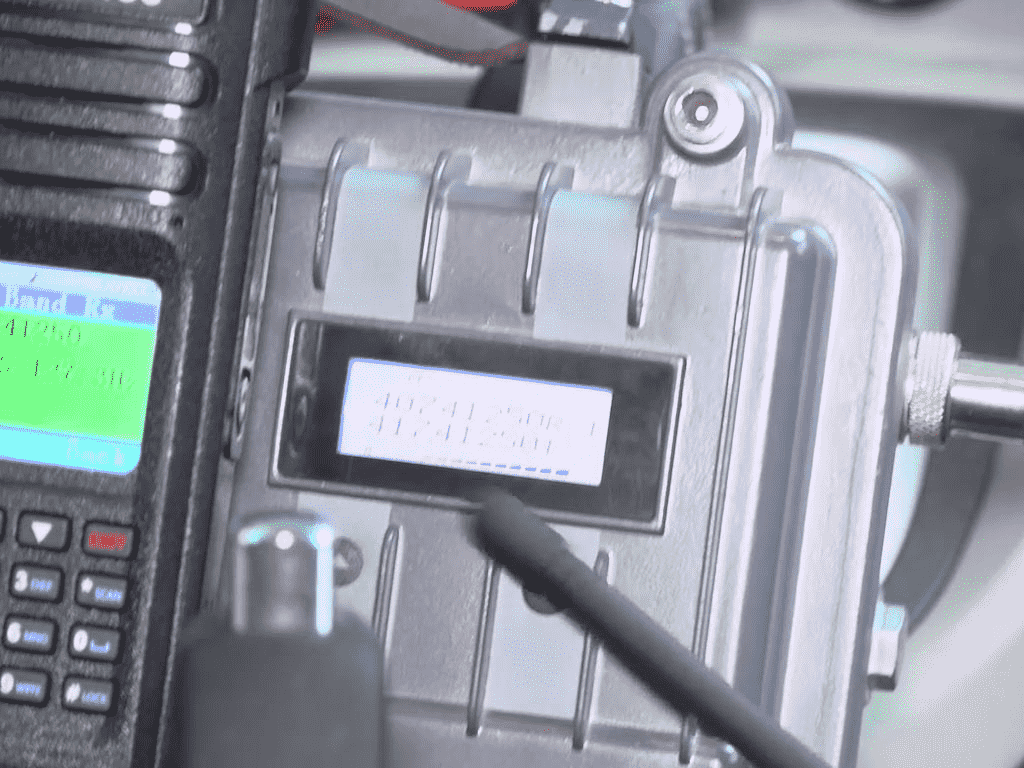

Car radio solution system Repeater test:

1.Uplink frequency: 407.41250Mhz
2.Downstream frequency: 417.41250Mhz
3.CTCSS：127.3
4.Frequency difference: 10Mhz

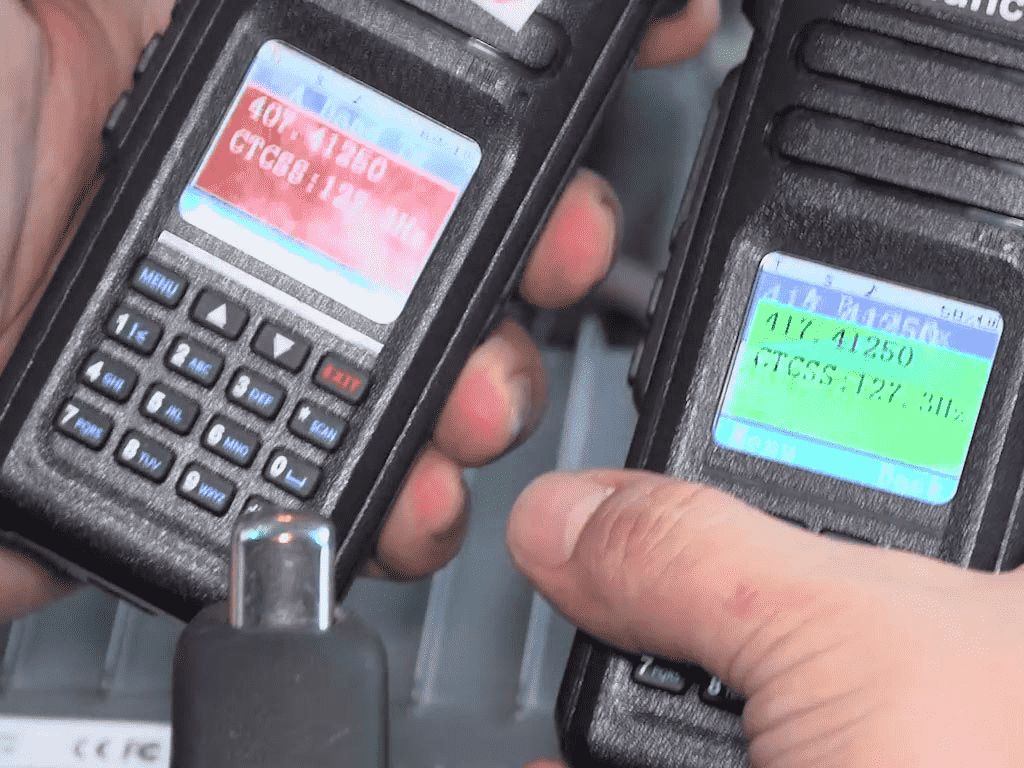

Normal operation of retevis RT97 repeater and handheld radio of Car radio solution system from retevis radio solutions:
