Evaluation | Retevis Helmet Walkie Talkie RA16 teardown evaluation
Retevis, a mainstream supplier of commercial walkie-talkies, broke through the traditional design of walkie-talkies and launched RA16 walkie-talkies that resemble safety helmets for construction users, breaking the design boundaries between professional communication products and consumer electronics products, and aroused strong responses from the industry. This product has a novel appearance, user-friendly control, and portable charging method.

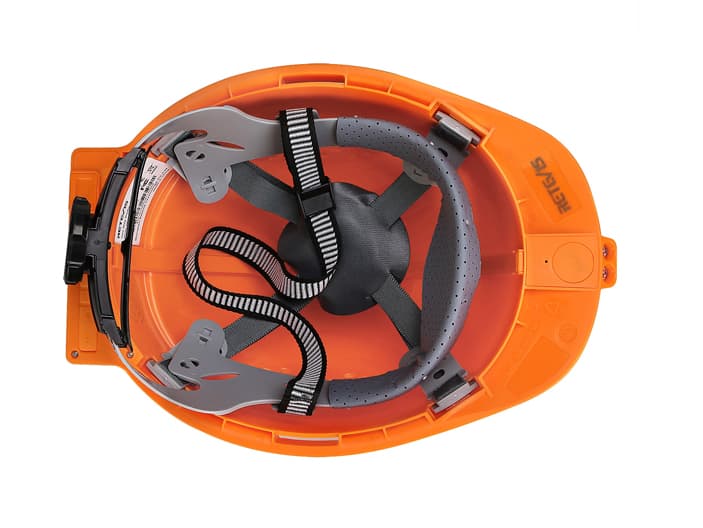

Inside display of Retevis RA16 helmet walkie-talkie
It has become the new favorite of the construction team, and it has been in short supply in channels. Today, we will reveal the product design of the Retevis RA16 helmet walkie-talkie from the perspective of product disassembly, and explore the internal structure of the Retevis RA16 helmet walkie-talkie. How the Retevis RA16 helmet walkie-talkie subverts the tradition.

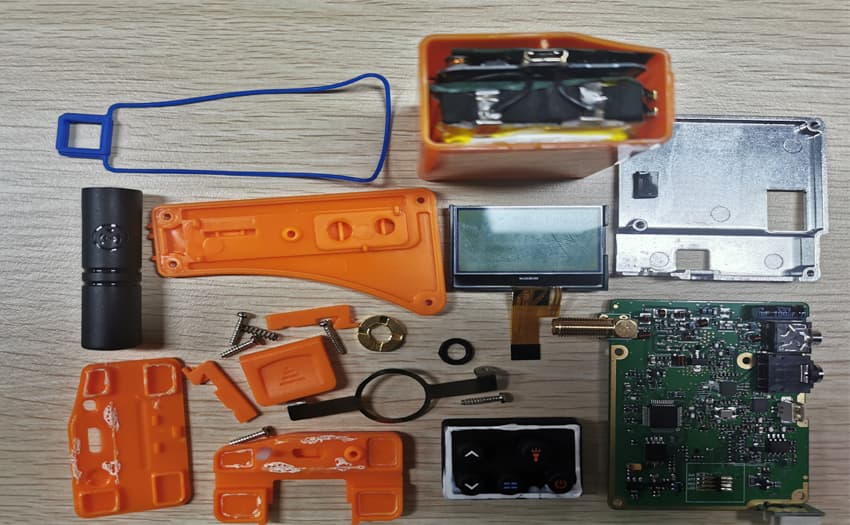

Retevis RA16 helmet walkie talkie disassemble display
Retevis RA16 helmet walkie talkie disassemble display

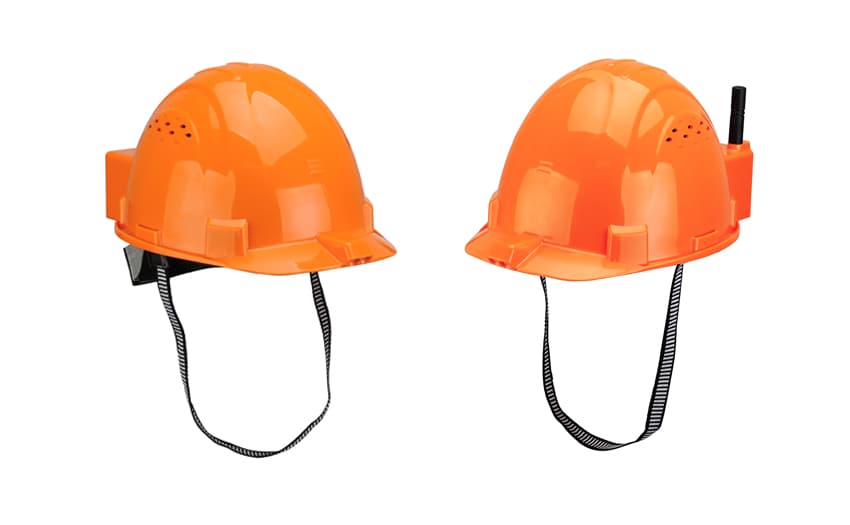

The appearance of the Retevis helmet walkie-talkie RA16 is exactly the same as the safety helmet, which is safe and professional. Both the front shell and the PTT buttons are formed in two colors, which guarantees the quality and is extremely beautiful and vivid, especially the orange-yellow color warning effect is obvious, and the design is very user-friendly.

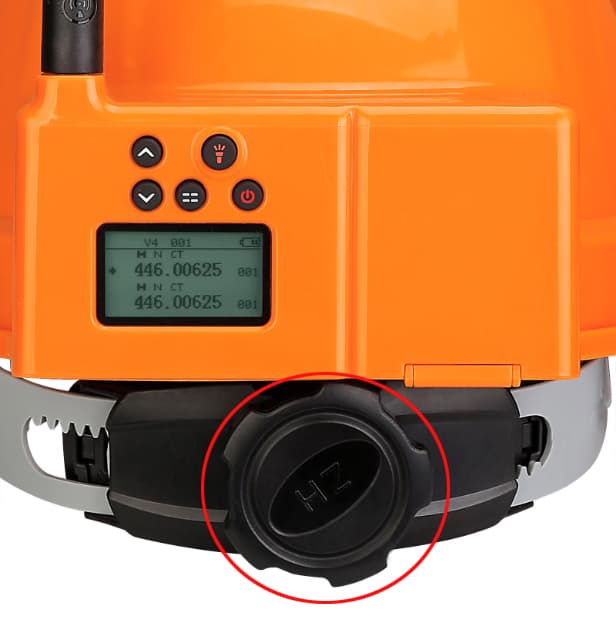

Retevis RA16 helmet walkie talkie size adjustment knob, turn clockwise or counterclockwise to adjust the size
Retevis RA16 helmet walkie-talkie adopts a detachable structure design, hidden intercom system, flip the buckle, you can adjust the size of the head wear, very convenient, closed battery design.

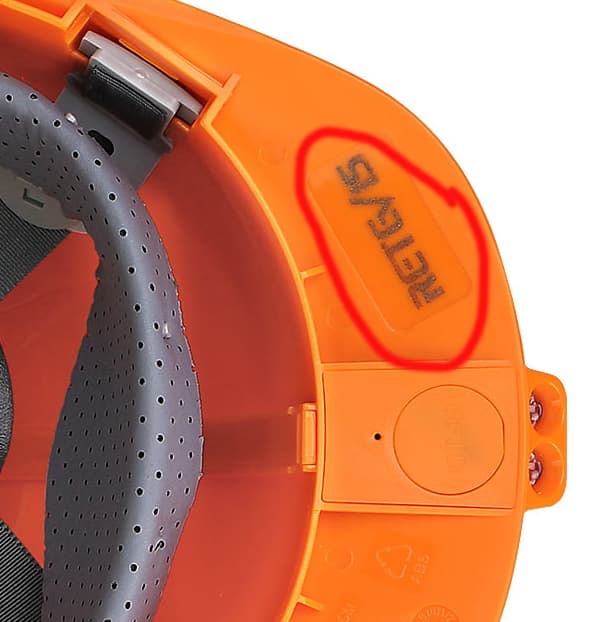

Retevis RA16 helmet walkie talkie Retevis brand logo

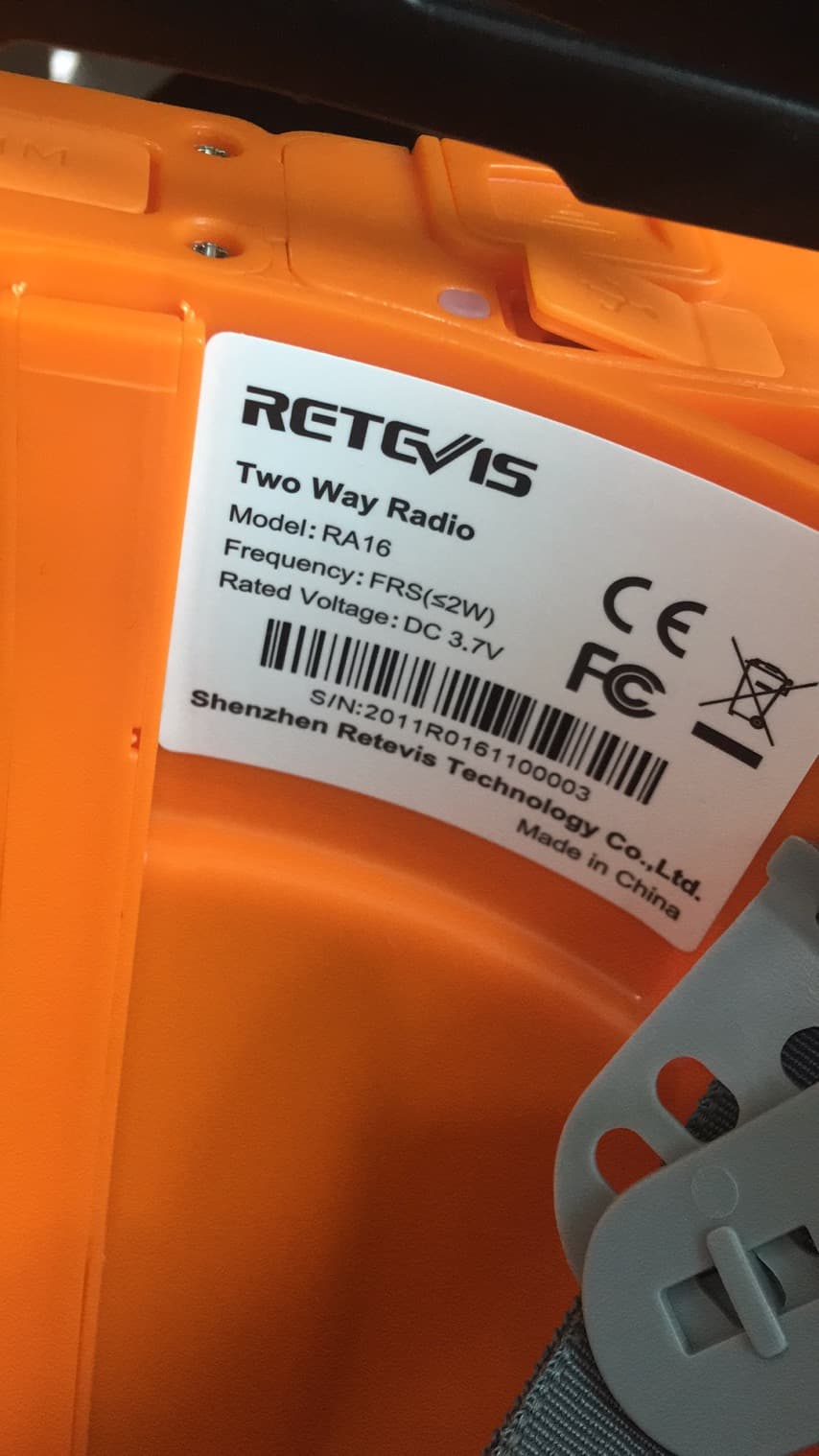

Retevis RA16 helmet walkie talkie label
Retevis RA16 helmet walkie-talkie products are handled with special care in every detail. Carefully observe that there is a protruding buckle on the original Retevis RA16 battery, which can be buckled on the back cover to prevent the battery from loosening or falling out when the radio is dropped.

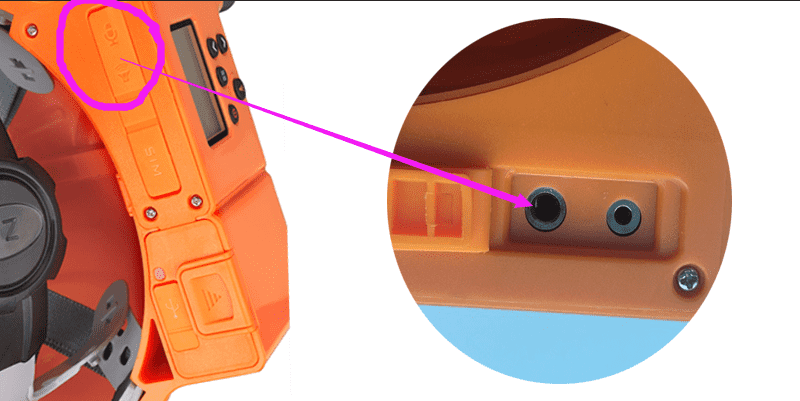

Retevis RA16 helmet walkie talkie speaker mic plug
Using a professional disassembly tool, you can disassemble the 4 hexagonal screws (4 screws in total for the whole machine). What you see is the highly integrated design of the integrated motherboard. All the design highlights will be presented one by one!

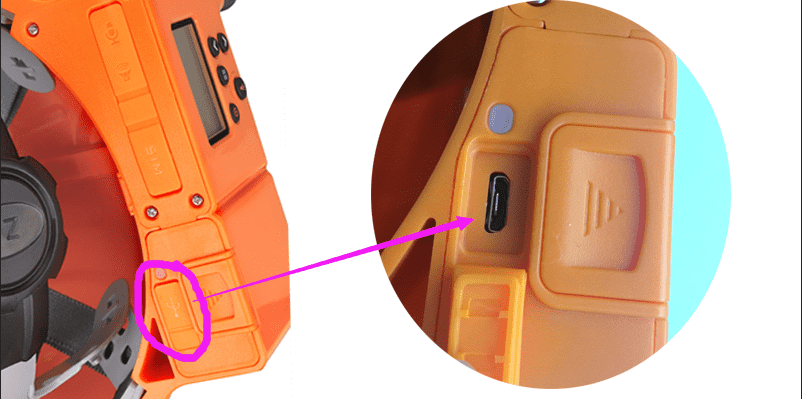

Retevis RA16 helmet walkie talkie charger plug
The core function of the walkie-talkie is real-time talkback, so the functional modules on the motherboard are mainly radio frequency signal transmission and reception and signal processing modules. Good anti-electromagnetic signal interference ability is the prerequisite for excellent voice communication effect. It can be seen from the motherboard that the main components are all designed with modular shields, which are anti-jamming and anti-radiation, ensuring the performance of the machine and reducing radiation damage to the human body.
Retevis RA16 helmet walkie talkie SIM card plug
The yellow copper wire coil embedded in the top of the machine is the antenna. This is the real reason why the appearance of the Retevis RA16 helmet walkie-talkie subverts the tradition. This design not only beautifies the appearance, but also prevents users from damaging the walkie-talkie by some misoperations during the use of the walkie-talkie. If the antenna is accidentally dropped and the antenna is broken, if the antenna is not attached, the transmitter button is accidentally pressed to launch, causing the phone to burn. Hidden dangers.

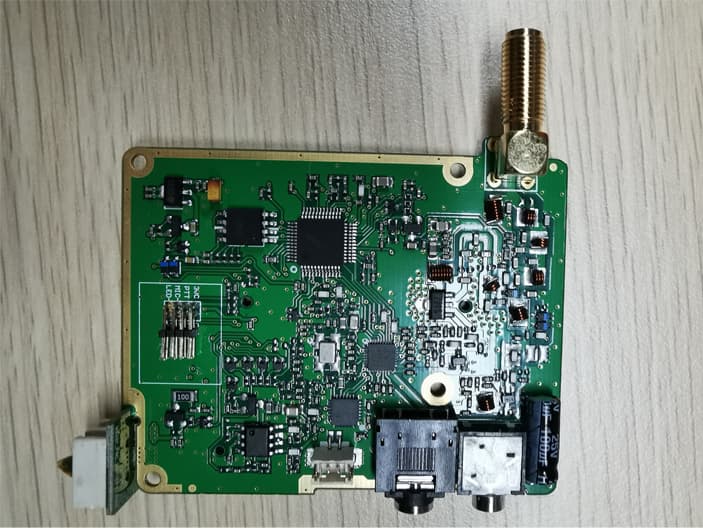

Retevis RA16 helmet walkie talkie chip-1

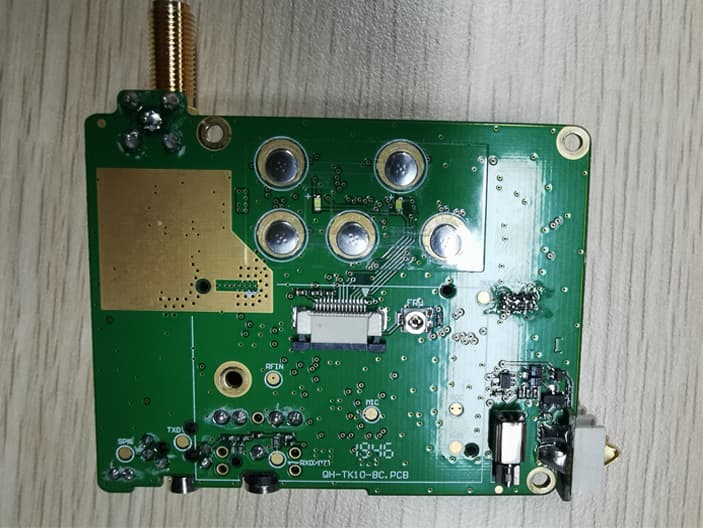

Retevis RA16 helmet walkie talkie chip-2
Under working conditions, construction workers prefer to wear the walkie-talkie to their waist or put it in their pocket. A separate walkie-talkie often brings inconvenience to the construction workers’ operation. In addition, the opportunity for walkie-talkies is easily lost. The operation of the walkie-talkie often affects normal hands jobs.

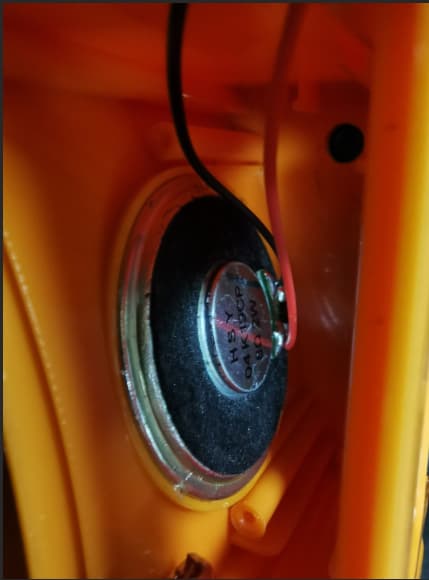

Retevis RA16 helmet walkie talkie speaker
The Retevis RA16 helmet walkie-talkie adopts the appearance design of a safety helmet, which perfectly combines the walkie-talkie with the safety helmet, which can help construction workers to have immediate barrier-free communication during the work process while ensuring the safety of workers.
If you have any radio needs or ideas, please contact us infor@retevissolutions.com , we will do our best to help you.
