Zhengzhou National Wetland Park of Yellow River Private network communication solution environmental description:

Zhengzhou Yellow River National Wetland Park,One of the 20 wetland park pilots approved by the state.Zhengzhou Yellow River National Wetland Park covers an area of 2390 hectares.The location in the plan is,The south side of the Yellow River channel between the Yellow River pontoon and the Yellow River Highway Bridge in the Huiji District of Zhengzhou City.

Zhengzhou National Wetland Park of Yellow River

Zhengzhou National Wetland Park of Yellow River-2 Zhengzhou National Wetland Park of Yellow River map

The Zhengzhou Yellow River National Wetland Park consists of six functional zones:
Popular science mission area, recreation and entertainment area, beach area exploration area, ecological conservation area, Yellow River farming and cultural area and comprehensive service area.The Zhengzhou Yellow River National Wetland Park Planning Area has a typical river wetland ecosystem.Rich in animal and plant resources,It is important that a large number of migratory birds stop, winter or breed here every year.

Map of Zhengzhou National Wetland Park of Yellow River

The problems facing the Zhengzhou National Wetland Park of Yellow River Private network communication as:

1. Safety protection of river embankments:The entire park is in the Yellow River channel.The soil of the Yellow River bed is soft,It is easy to collapse,It is more prone to collapse during the flood season.
2. Safety protection for water projects:There are some boats on the Yellow River.There are also a lot of passengers on the boat.Doing a good job in water rescue is also one of the priorities.
3. Park workers communication:The land area of the park is 2390 hectares.It is 2.5km long and east.Voice communication is often required between employees.Radios are needed to increase productivity.
4. Radio operation certificate problem: Because the park management staff are mostly residents nearby,There is no radio operating certificate.
It is more appropriate to use an exempted radio product.
5, emergency center: There is an emergency center at the main entrance of the park.Responsible for medical rescue in the park.A dedicated emergency communication channel is required.

The Zhengzhou National Wetland Park of Yellow River Private network communication solutions is as follows:

The landform is relatively flat,Simple functional requirements: clear voice communication.The hand-held terminal uses an exemption walkie-talkie.The number of employees in the management group, employee group and first aid group is 20~30.The number of people used is small.

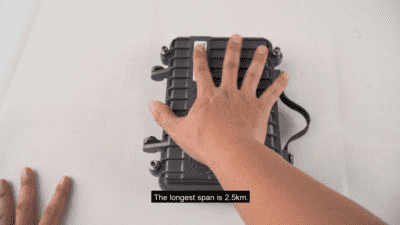

And they are all inside the park.Use one channel.The signal covers the entire park and the Yellow River.The longest span is 2.5km.The repeater station uses RT97 to fully meet the demand.

RT97 Repeater is small

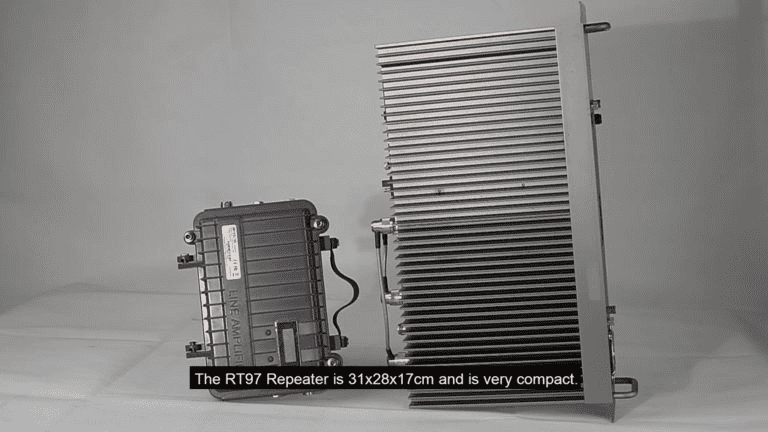

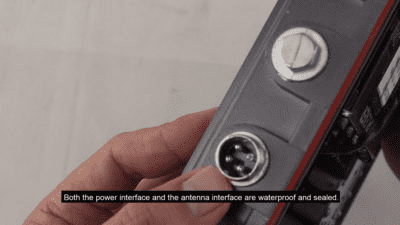

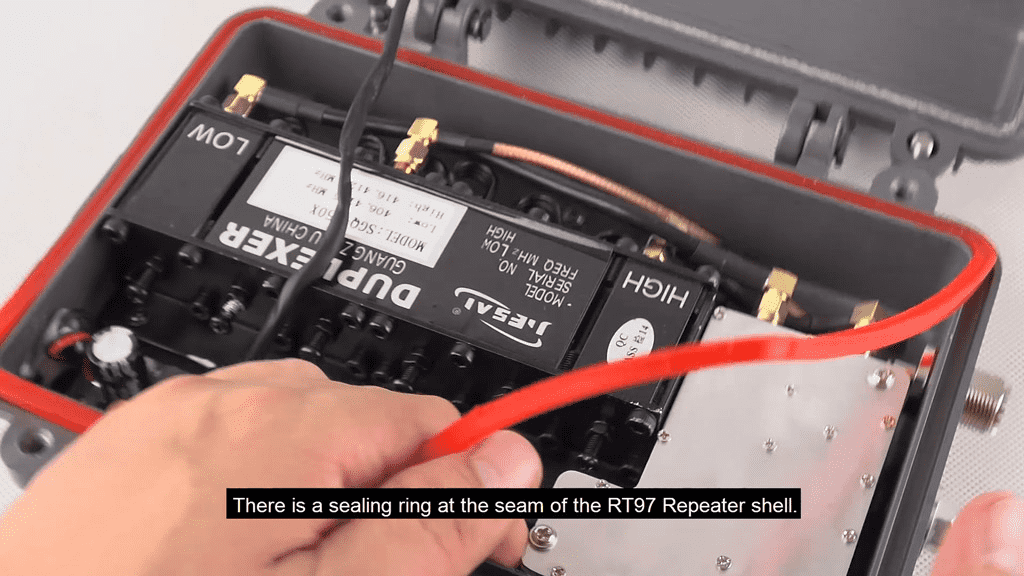

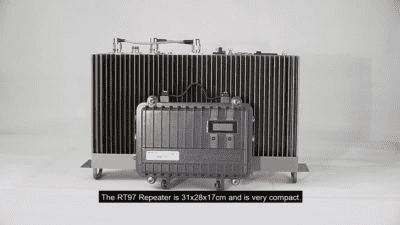

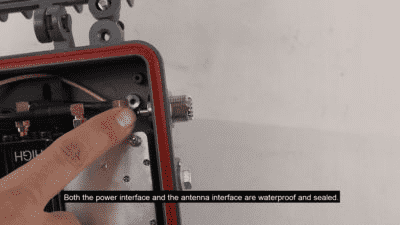

There is a sealing ring at the seam of the RT97 Repeater shell.Both the power interface and the antenna interface are waterproof and sealed.RT97 Repeater is not afraid of wind and rain, sunlight erosion,The RT97 Repeater is ideal for outdoor use.The RT97 Repeater is 31x28x17cm and is very compact.The RT97 Repeater weighs only 1705g.The most one Repeater is very light.These make it much easier to build a repeater system.

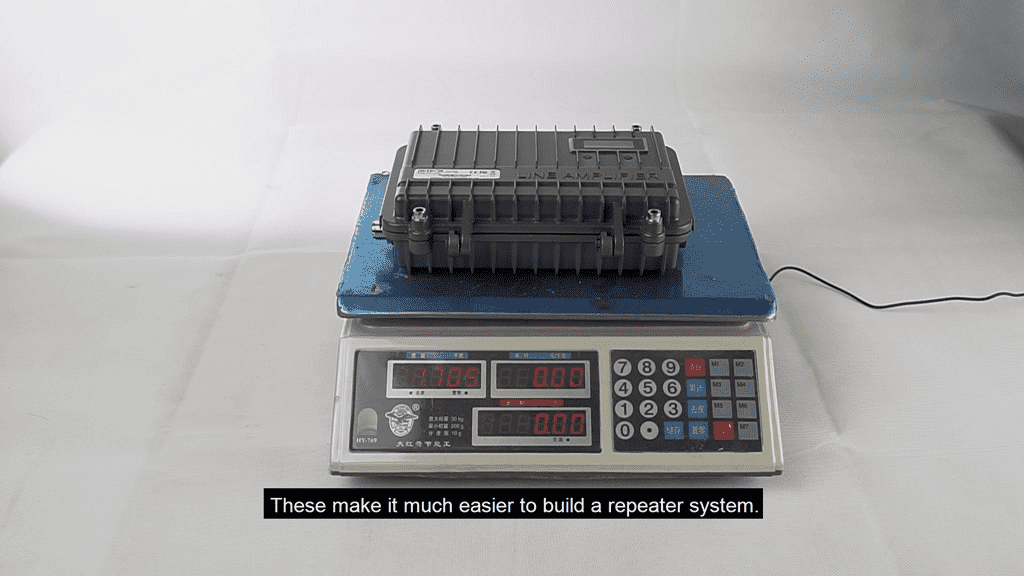

RT97-Repeater-weight-1705g RT97-Repeater-weight-1705g

RT97-Repeater-feeder-interface-waterproof-treatment

RT97-Repeater-power-connector-waterproof-processing

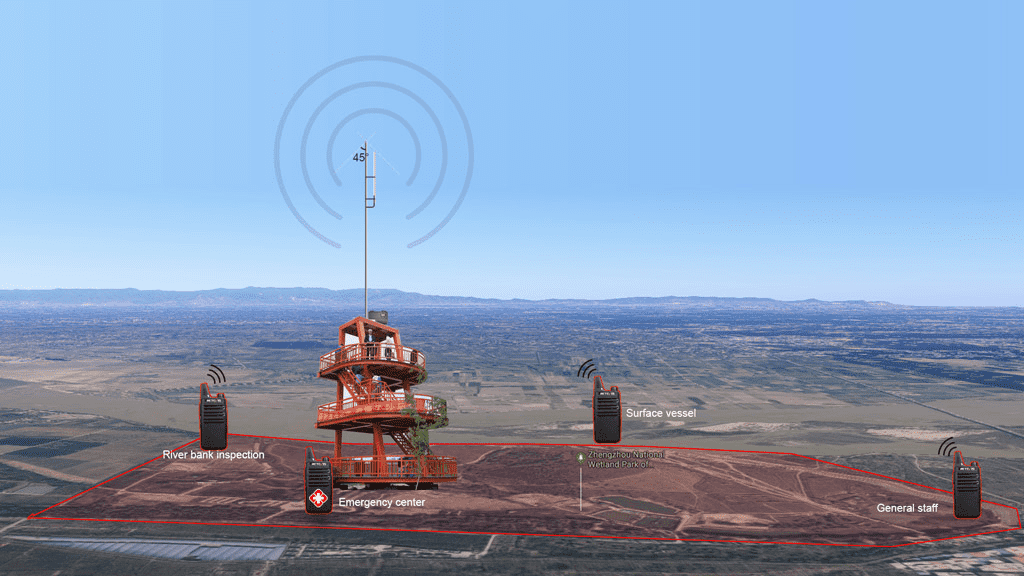

Retevis RT97 Antenna erection position Antenna erection position,The center of the park is west to the bird watching station.The birdwatching platform is built for steel profiles.3 stories, about 12 meters high.The antenna support rod is 10 meters high.The total height of the antenna is 22 meters.

Private network communication solution

Transit station communication radius estimation:
SG（dB）=Pt+PA-（RA+CL+RR）=27+0-（9.8-2-116）=131.2（dB）
LM（dB）=88.1+20lgF-20lgh1h2+40lgd

131.2=88.1+20lg455-20lg(1.7*22)+40lgd
131.2=88.1+20*2.66-20*1.57+40lgd
131.2=88.1+53.2-31.4+40lgd
21.3=40lgd
0.5325‬=lgd
d=3.4km

Private network communication solution-Communication distance

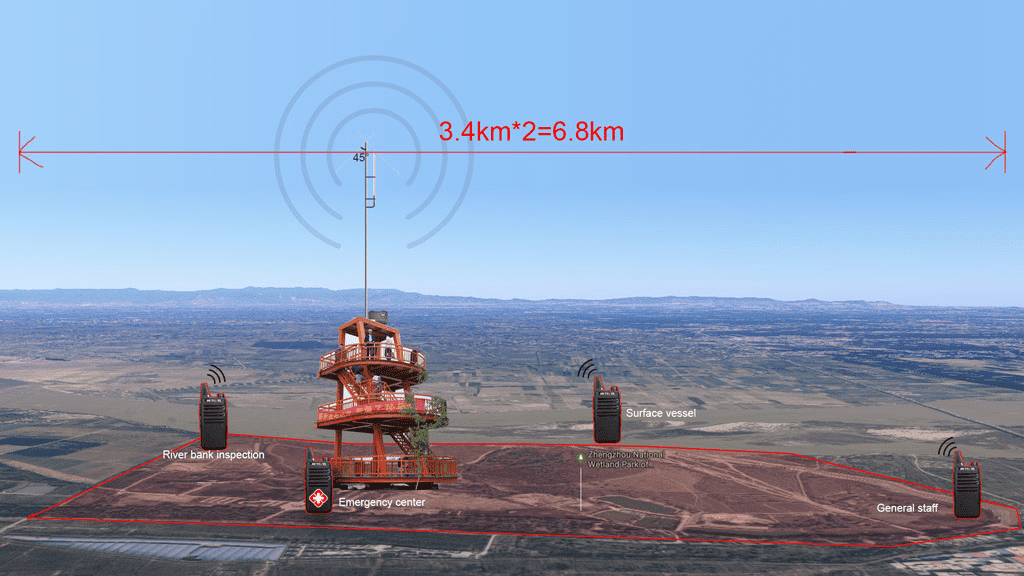

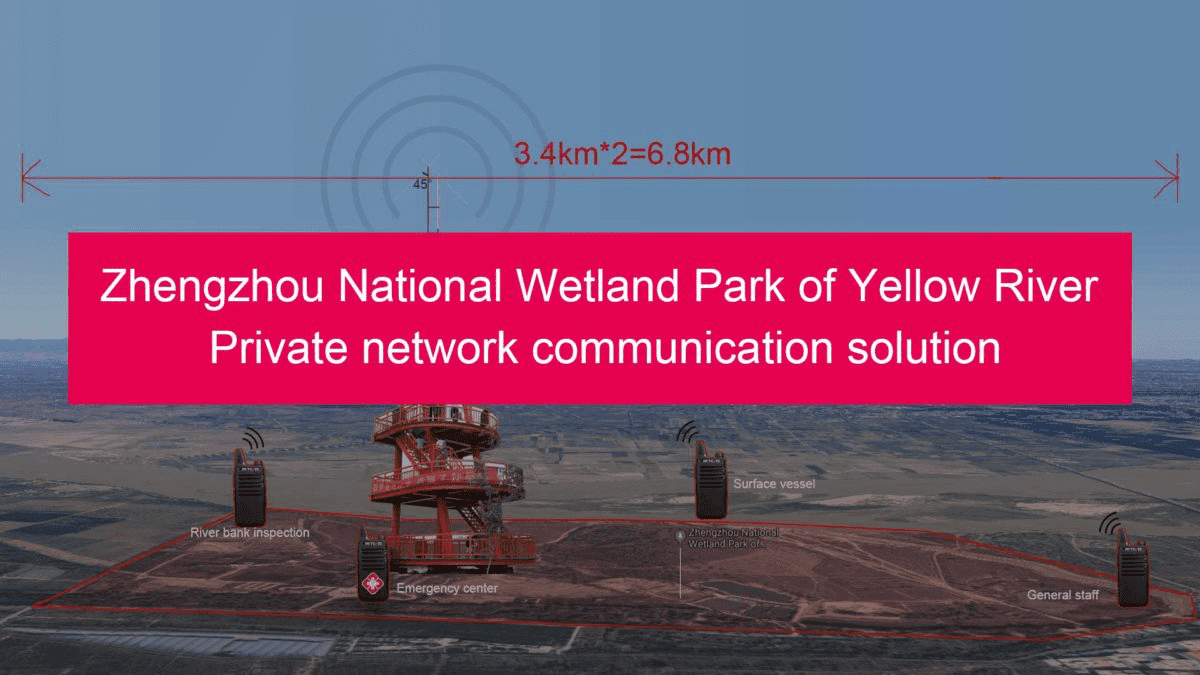

The communication covers a radius of 3.4km.The longest distance of communication can reach 6.8km.Complete coverage of the entire park and its surroundings.

Zhengzhou National Wetland Park of Yellow River Private network communication solution related equipment:

Retevis RT22 radio.png

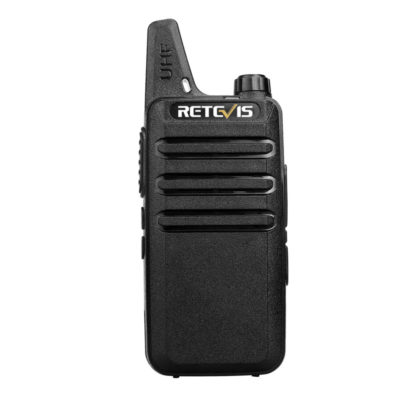

Retevis RT22 mini handheld walkie talkie

Retevis feeder cable.png

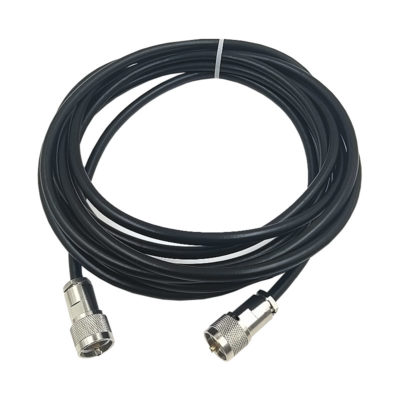

Retevis feeder cable

retevis FRP antenna.png

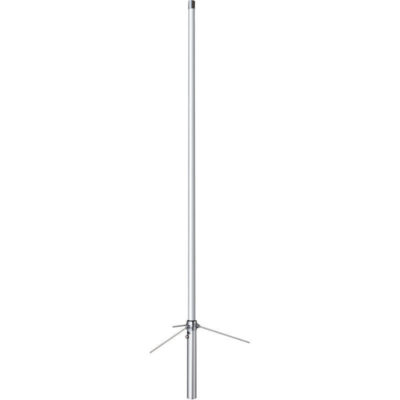

Retevis FRP antenna

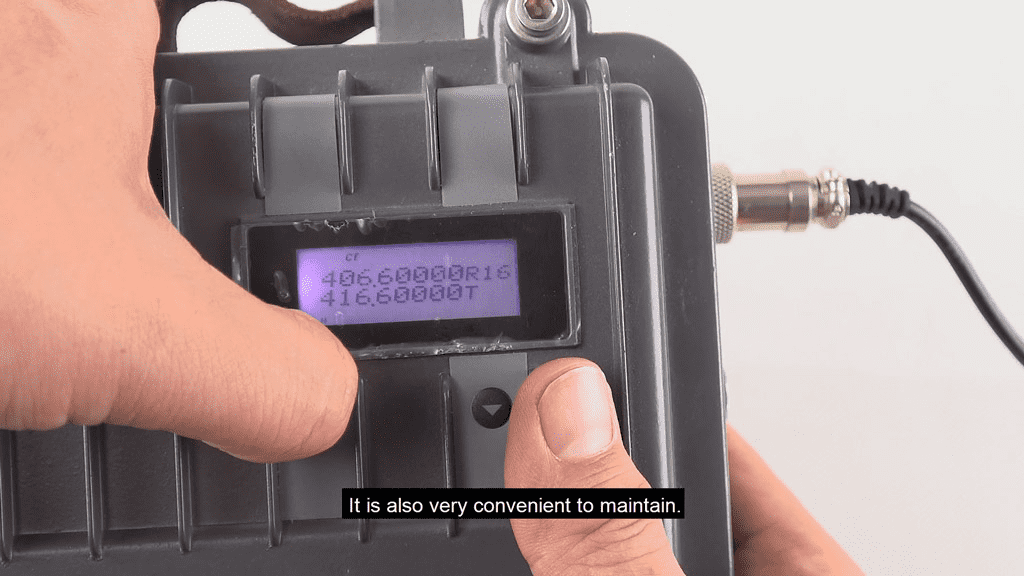

The whole project is not only simple to construct,It is also very convenient to maintain.RT97 Repeater can pre-store 16 channel information.And each channel can be set to receive and transmit sub-audio independently.After commissioning,The working channel can be modified directly by pressing the button.The Changan Up arrow looks at the sub-audio settings of the current channel.

RT97-Repeater-16-channel

Zhengzhou National Wetland Park of Yellow River Private network communication solution has low cost and high quality, which perfectly solves the problems faced by radio communication.
