RT90 50W DMR Mobile Radio-GPS with MR400 6.5dbi fiberglass antenna
*Global Positioning System
*TDMA digital function
*recording function
*Compatible with Mototrbo Tier I and II
*Long-distance call mobile bundle, suitable for adventure, rescue and other scenarios
FREE SHIPPING
Retevis RT90 50W DMR Mobile Radio with MR400
The Retevis RT90 DMR mobile radio is a digital and analog automotive radio transceiver suitable for automotive radio communications. GPS, dual frequency, 50W high power, 250 areas, 3000 channels, 10,000 contacts and other functions. Equipped with mr400 high-gain fiberglass antenna, suitable for long-distance communications such as outdoor rescue.
Description：
Retevis RT90 DMR mobile Radio supports analog and digital modes so you can enjoy the best of both. It provides dual band support, operating on both 400-480MHz UHF frequencies and 136-174MHz VHF at up to 50 watts VHF and 45 watts UHF, using Time-Division Multiple-Access (TDMA) digital technology. This digital mobile radio is also compatible with Motorola TRBO and DMR Tier II.
- The Retevis RT90 DMR mobile Radio offers 250 zones with 16 channels for each zone. It has built-in CTCSS/DCS, channel scan, priority scan, short text message features, draft message edit, contacts check and edit, and encryption. It also has remote stun/kill and activates.
The Retevis RT90 DMR mobile Radio includes Private calls, Group calls, and All calls. It also includes Lone worker mode, power save mode, low power alarm, an emergency alarm and VOX capability. Plus, it's PC programmable and firmware upgradeable to boot, providing the maximum flexibility and versatility to rival any other digital mobile radio on the market!
- The Retevis RT90 DMR mobile Radio gives you a color LCD display with clear, sharp text for an easy read from your dash or console. It also gives you programmable function keys on the console and a hand mic with programmable keys, two built-in LEDs and a DTMF keypad and for full access to its menu of powerful digital and analog features. No doubt about it, it gives you all the value of a premium digital mobile radio at an amazingly affordable way!
Feature:
- Output power: 50W
- Use TDMA digital function
- Compatible with Mototrbo Tier I &II
- Dual band, dual standby, dual display, dual time slot
- 250 zone, 3000 channel, 10000 contacts
- Digital mode and Analog mode
- Single call, group call and all call
- Emergency function
- Remote kill/stun/Activate
- Group match/single match
- Record function
- PC programmable function
- CTCSS.DCS encoding and decoding function
- PC password protection function
- Color LCD Display
- Programmable functional keys
- Low Voltage prompt
- Upgradeable by firmware
- TOT
- SQL Setting
- Scanning Function and priority scanning
- Monitor Function
- VOX Transmitting
- Lone Worker
- Time and zone setting

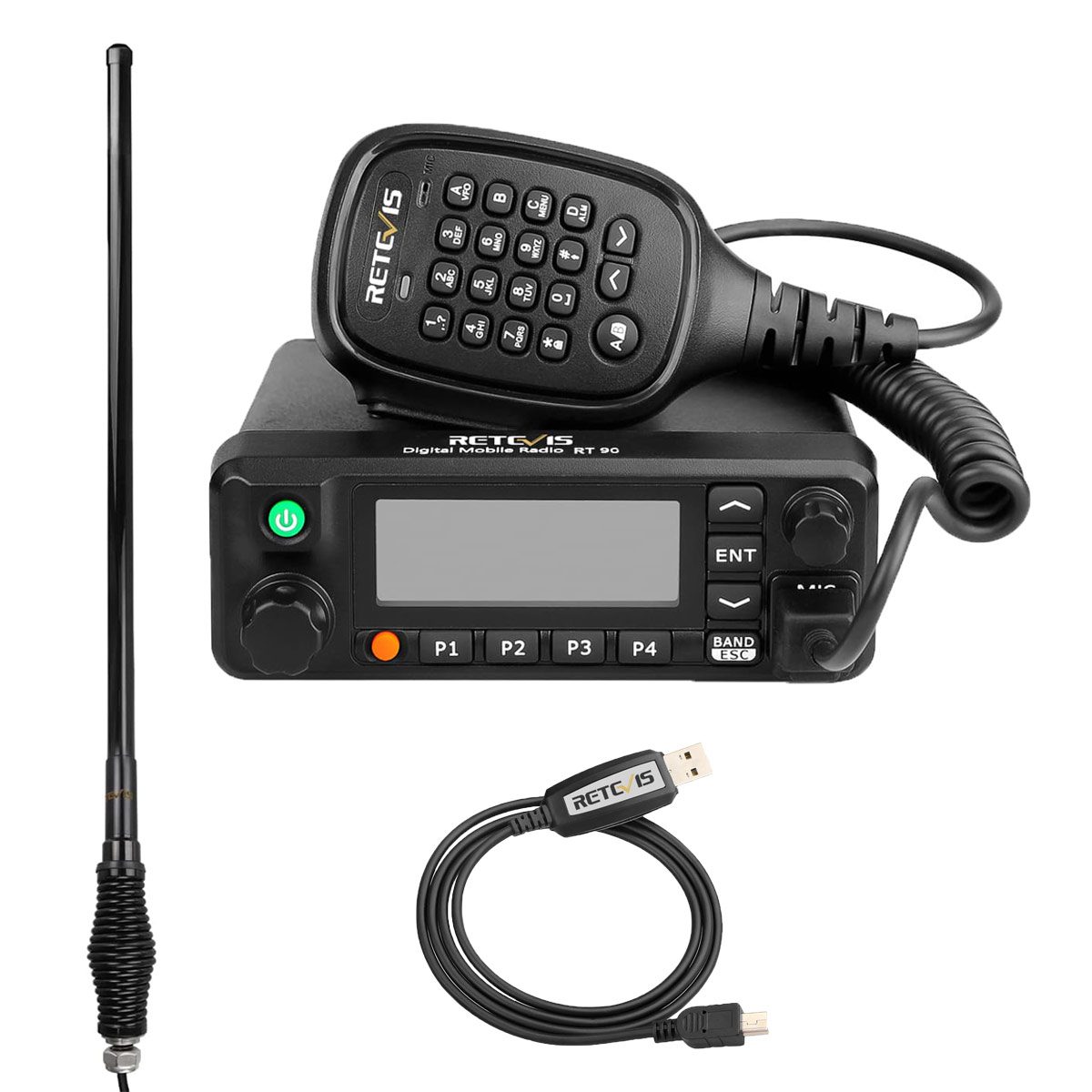

Package includes:
- 1 x Retevis RT90 DMR Mobile radio
- 1 x program cable for RT90
- 1 x MR400 6.5dbi antenna
- 1 x User's manual
| General | |
| Frequency Range(MHz) | VHF: 136-174Mhz UHF:400-480Mhz |
| Channel | 3000 |
| PLL Channel Spacing | 6.25/12.5/25KHz |
| Voltage Rating | DC 13.8V |
| Operating Temperature | -30℃~+60℃ |
| Storage Temperature | -30℃ ~+85℃ |
| Dimention | 143*50*175 mm |
| Compatible With American Military Standard | (MIL-STD-810C/D/E) |
| Transmitter | |
| RF Power Output | L:25W H:50W (VHF)L:25W H:45W (UHF) |
| FM Hum and Noise | -40dB @12.5KHz -45dB @25KHz |
| Modulation limited | +/- 2.5KHz @ 12.5 KHz +/-5.0KHz @ 25KHz |
| Conducted/radiated emission | -36 dBm ＜ 1GHz -30 dBm ＞ 1GHz ＜ 4GHz |
| Adjacent channel power | -60dB @12.5KHz -65dB @25KHz |
| Audio Response | +1dB ~ -3dB |
| Audio distortion | 3% |
| FM Modulation | 12.5KHz:11KOF3E25KHz:16KOF3E |
| 4FSK digital modulation | 12.5KHz only date:7K60FXD 12.5KHz date and audio:7K60FXE |
| Digital protocol | ETSI TS 102361-1,-2,-3 |
| Digital vocoder type | AMBE++ |
| Digital agreement | DMR |
| Receiver | |
| Frequency stability (-20℃+60℃,+25℃) | +/-1.0ppm |
| Digital Sensibility | 0.3uV/-117.4dBm (BER 5%)0.7uV/-110 dBm (BER 1%) |
| Analogue Sensibility | 0.35uV/-116dBm(20dB SINAD) 0.22uV/-120dBm(20dB SINAD) |
| Rated audio | 5W |
| Adjacent Channel Selectivity | TIA603C:60dB@ 12.5 KHz ETSI: 60dB@12.5 KHz |
| Intermediation | TIA603C:65 dB ETSI:65dB |
| C0-Channel Rejection | 12dB @12.5KHz |
| Spurious Rejection | TIA603C:70dB ETSI:70dB |
| Audio distortion @ rated audio | ≤3% |
| FM Hum and Noise | -40dB @12.5KHz -45dB @25KHz |
| Audio response | +1dB~-3dB |
| Spurious emission | -57dBm@m ＜ 1GHz -47dBm@m ＜ 1GHz |
| Bolck | 84dB |
