*the size of 100*106*24mm,
*Lightweight, portable and easy to operate
*with UHF400-490MHz/VHF136-174MHZversion
*Ready to use out of the box in combination with the MR100 3.5DBI antenna
*Very suitable for novices or friends who don’t need extra features
FREE SHIPPING

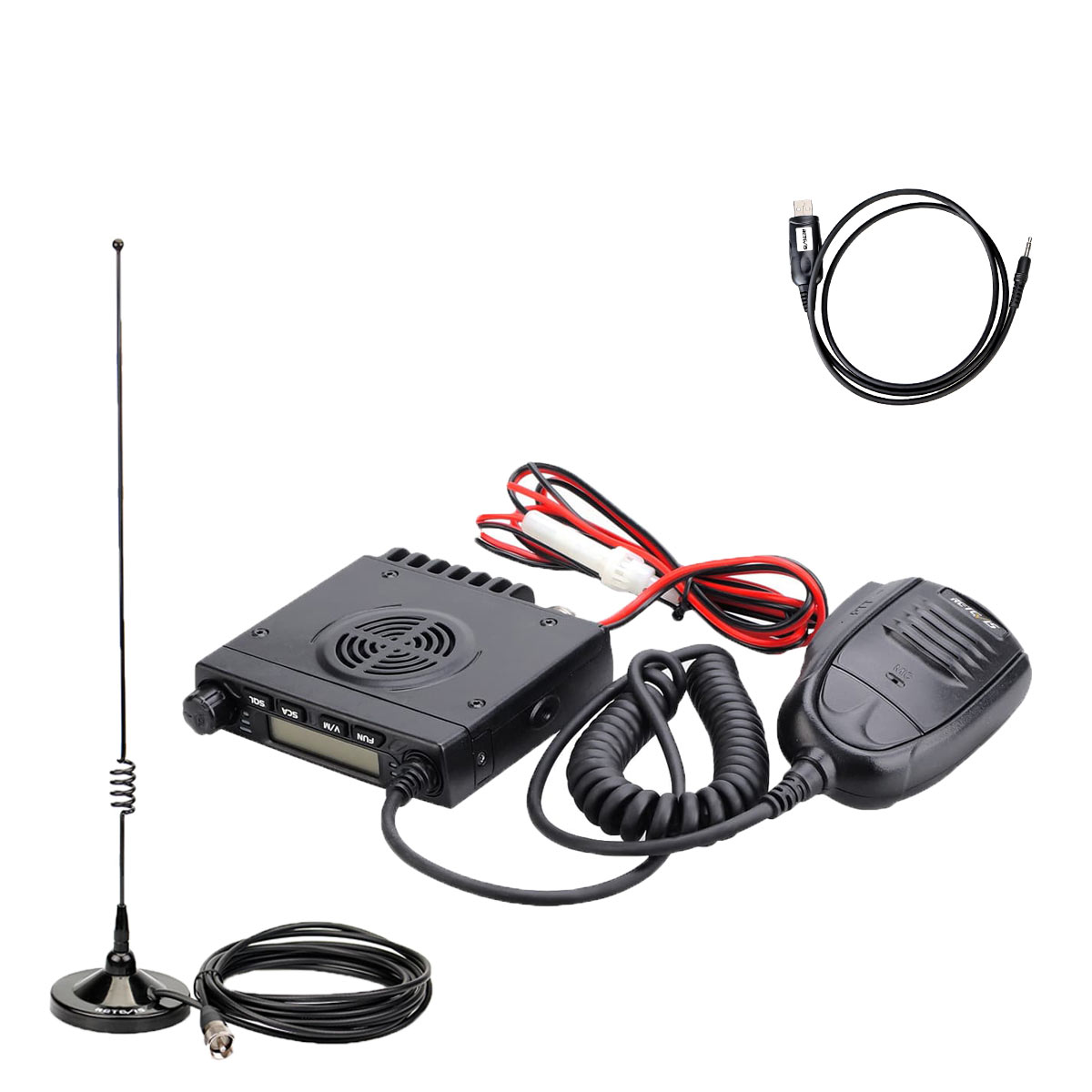

Retevis RT98 Mini Mobile Car Radio
RT98 15W Compact Mobile Radio with MR100, perfect for novices or friends who don’t need extra features. The size is 100*106*24mm, light, portable and easy to operate. Available in UHF400-490MHz/VHF136-174MHZ version.
UHF/VHF Version Features:
- Mini size and lightweight, easy to install
- Adopt superior quality material, better technology and high-quality radiator to ensure the stable and durable operation
- There are Amateur operation mode and Professional operation mode for option
- 199 programmable memorized channels, identified by editing name
- Various scan functions including CTCSS/DCS Scan function
- Automatic calling Identification function by CTCSS or DCS signaling
- Different bandwidth per channel, 25K for wideband, 12.5K for narrowband
- Frequency Step 2.5K, 5K, 6.25K, 10K, 12.5K, 20K, 25K, 30K, 50K
FreeNet Version Features:
- Six 149 MHz FreeNet channels, can be used without a license in Germany
- 500mW transmission power
- LC display, illuminated in orange, black lettering
- S-meter integrated in LC display
- 4 function keys for squelch, search, memory switching and the function menu
- On / off switch with volume control
- Permanently connected electret microphone with channel selection / control buttons.
- Permanently connected power cable with cigarette lighter plug and integrated fuse.
- Squelch adjustable, Channel search scan, CTCSS / DCS decoder and encoder, Connection for additional speakers.
- Removable antenna (PL connector) with 380cm coax cable.
Note:
1. Orders after May 2019 do not have VFO function.Need to use RT98-programming-softwareV1-02 software to read and write frequency.
2. A9171A A9171B U-segment or V-segment radio, the factory setting is only one frequency, need program cable to program more frequency. Program cable link: Retevis RT98 Progam cable.
Package Includes
- 1 x Retevis RT98 Mobile radio
- 1 x Install bracket
- 1 x Fuse
- 2 x Non-slip mat
- 1 x Microphone Hanger
- 2 x Adjusting screws
- 4 x Screws
- 4 x Pads
- 1 x program cable for RT98
- 1 x MR100 3.5DBI antenna
- 1 x User manual
UHF/VHF Version Specification:
| GENERAL | ||
| Frequency range | UHF400-490MHz/VHF136-174MHZ | |
| Number of Channels | 199 channels | |
| Channel Spacing | 25KHz(Wide Band) 12.5KHz(Narrow Band) | |
| Phase-locked Step | 2.5K,5K,6.25K,10K,12.5K,20K,25K,30K,50K | |
| Operating Voltage | 13.8V DC ±15% | |
| Squelch | Carrier/CTCSS/DCS | |
| Frequency Stability | ±2.5ppm | |
| Size | 100*106*24mm | |
| Weight | 434g | |
| RECEIVER | ||
| Wide Band | Narrow Band | |
| Sensitivity (12dB SINAD) | ≤0.25φV | ≤0.35φV |
| Adjacent ChannelSelectivity | ≥60dB | ≥60dB |
| Intermodulation | ≥60dB | ≥60dB |
| Spurious response | ≥60dB | ≥60dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
| Hum & Noise | ≥45dB | ≥40dB |
| Audio Distortion | ≤5% | |
| Audio Power Output | >2W@16R | |
| TRANSMITTER | ||
| Wide Band | Narrow Band | |
| Power Output | 15W / 10W / 5W | |
| Modulation | 16KφF3E | 11KφF3E |
| Adjacent Channel Power | ≥70dB | ≥60dB |
| Hum & Noise | ≥40dB | ≥36dB |
| Spurious Emission | ≥60dB | ≥60dB |
| Audio Response | +1~-3dB(0.3~3KHz) | +1~-3dB(0.3~3KHz) |
| Audio Distortion | ≤5% | |
