*NOAA-Weather Radio
*Clear sound in noisy environment
*RB19P supports type-c charging
*Long distance bundle: 8km-15km
Free shipping

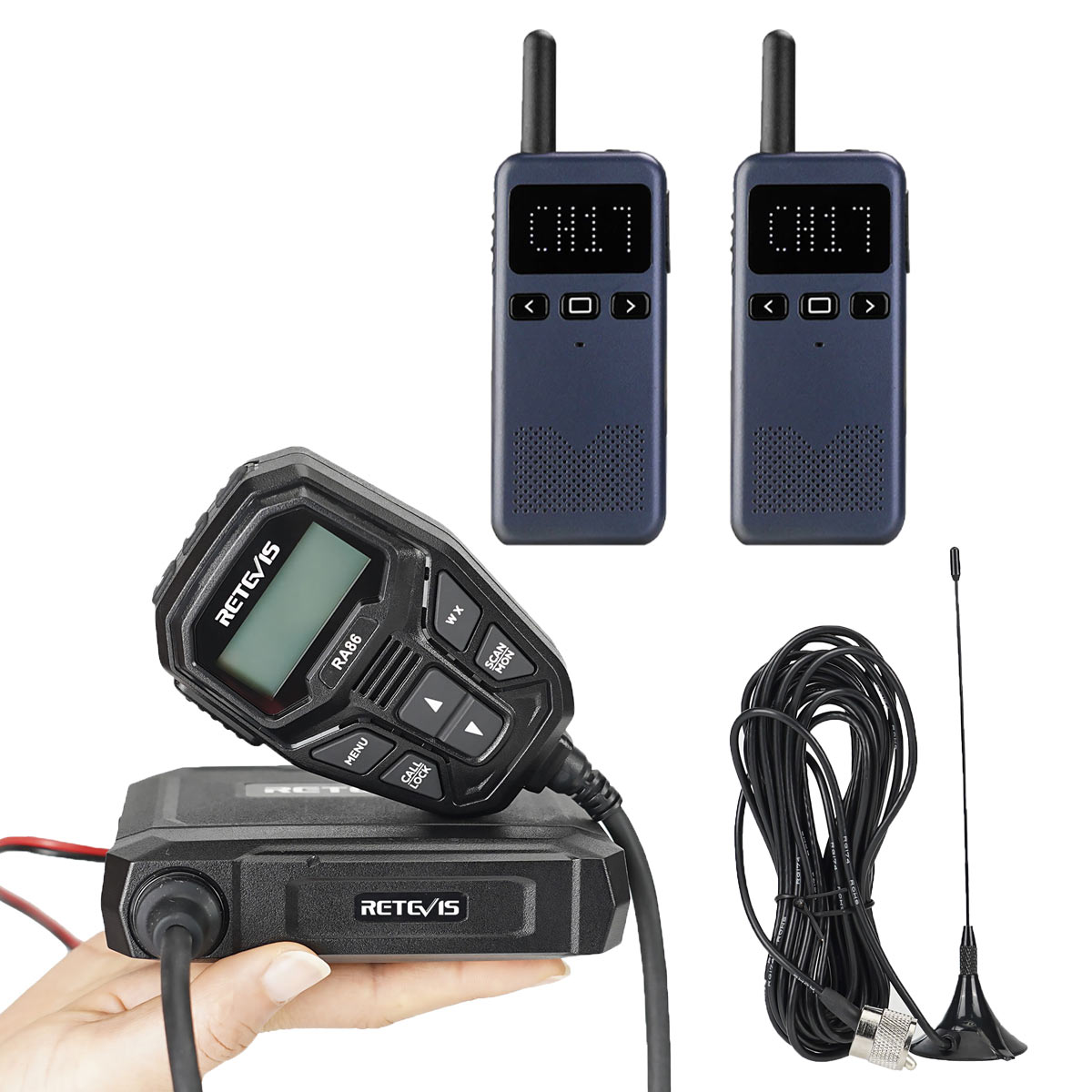

RA86 GMRS mobile radio with RB19P GMRS two-way radios-- Long range GMRS bundle
RA86 GMRS Mobile Radio with RB19P GMRS Two-Way Radio is a long range GMRS bundle. Comes with NOAA functionality. Calls are clear in noisy environments, supports type-c charging, and can reach a distance of 8km-15km. Very suitable for tractors, combine harvesters, off-road vehicles, RVs and summer camps.
Features:
Compatible with other radios:
Setting the same frequency and tone can support the connection of car radio and handheld walkie-talkie, and can connect RT97-RT97 or longer talking distance.
Long range GMRS communication kit:
Mobile two-way radios with antennas, RB19P and RA86 are both GMRS and can be used right out of the box.
NOAA Weather Channel:
RB19P has 11 weather channels, and RA86 has 10 optional weather channels, supporting scanning and alarm; providing more comprehensive weather information.
Clear sound in noisy environment:
Choose to turn on the microphone and all speakers in the radio or turn on one individually for clearer reception.
easy to use:
RA86 is a fully integrated handheld microphone for fast operation at close range; RB19P has a 2000mAh battery and supports USB-C charging.
Read content quickly:
RA86 has a variety of backlight colors to choose from; RB19P has an LCD screen to quickly view the current channel.
Package includes:
1 x RA86 20W GMRS mobile radio
2 x RB19P 5W GMRS two way radio
1 x 2 dBi antenna
1 x user manual
| overall parameters-RA86 | ||
| Modulation | FM | |
| Frequency Range | GMRS（462.5625-467.725） | |
| frequency error | ±500Hz | |
| Operating Voltage | 12.6-14.4V | |
| Antenna Impedance | 50Ω | |
| bandwidth | 12.5kHz/20kHz | |
| Working current | ≤3.3A Hi power | |
| ≤1.8A Lo power | ||
| Operating temperature | -30℃-+55℃ | |
| TX parameters | ||
| transmit power | ≥18W Hi power 4.5-6W Lo power |
|
| Spurious RF components | ≤-60dBC | ≤-13dbm |
| Transmit SNR | ≥35 | |
| modulation limit | ≤2.5KHZ（N） | |
| ≤5KHZ（W）@Repeater Channel | ||
| Adjacent power | ≤-65dBc | ≤-60dBc |
| Modulation Sensitivity | 5-15mV | |
| audio pre-emphasis | -3~-7@AF=500Hz | -6±3@AF=500Hz |
| 3-7@AF=2KHz | 6±3@AF=2KHz | |
| RX parameters | ||
| Receiver sensitivity | ≤-122m@SINAD=12dB | |
| audio output | 3.2V-4.2V@8R SPK | 3.2v-4.2v@8R SPK @AF=1KHz.FM Devation=1.5KHZ |
| reception distortion | ≤5.0% | ≤8% |
| Receive SNR | ≥40 | ≥36 |
| receive blocking | ≥80 | ≥75 |
| co-channel rejection | ≤-12 | |
| lane selectivity | ≥70 | |
| audio de-emphasis | 2~6@AF=500Hz | 6±3@AF=500Hz |
| -8~-3@AF=2KHz |
-6±3@AF=2KH z |
|
Antenna:
| Antenna ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS |
| Frequency Range:462 MHz | Length: 165 mm |
| Impedance: 50 V | Diameter of Chassis:φ39.5 mm |
| VSWR: ≤1.5 | connector: SL16-J |
| Gain: 2 dBi | Coaxial Cable: RG-174 |
| Polarization: Vertical | Length of Cable: 5 m |
| Radiation: Omni | |
| Maximum Power Input-watts: 50 W |
RB19P
| GENERAL | Frequency Range | GMRS |
| Rated Voltage | 3.7V DC | |
| Memory Channel | 30 | |
| Battery | 2000mAh | |
| Frequency Sensitivity | ±0.5ppm | |
| Antenna Impendance | 50Ω | |
| Operation Temperature Range | -30℃~+60℃ | |
| TRANSMITTER | RF power | ≤3W |
| Modulation type | FM(F3E) | |
| Modulation distortion | <5% | |
| Max FR.Deviation | ≤5KHz | |
| Spurious Radiation | ≤7.5μW | |
| Emission Current | ≤1800mA | |
| Preemphasis Character | Per Octave 6dB | |
| RECEIVER | Sensitivity | ＜0.16μV(12dB SINAD) |
| Itermodulation Interference Resistance | ≥60dB | |
| Receiving Current | ≤300mA | |
| Standby Current | ≤20mA | |
| Audio distortion | <5% | |
| Audio power | ≥300mW |
