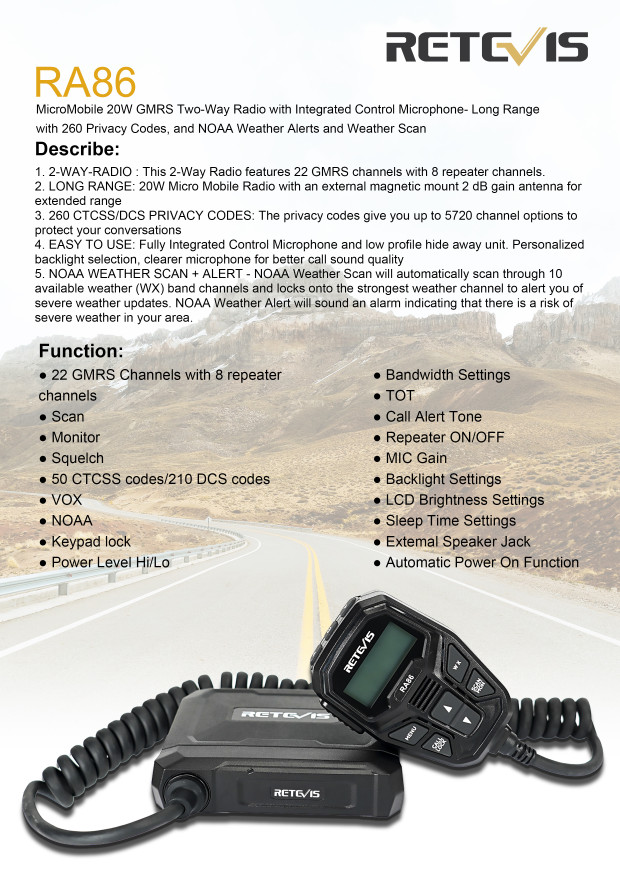

RA86 20W GMRS mobile radio with antenna beam, integrated control microphone, NOAA function, simple design and easy operation
RB17A special bright green color, unique portable design, emergency alarm, full 5W long distance call range
Free shipping

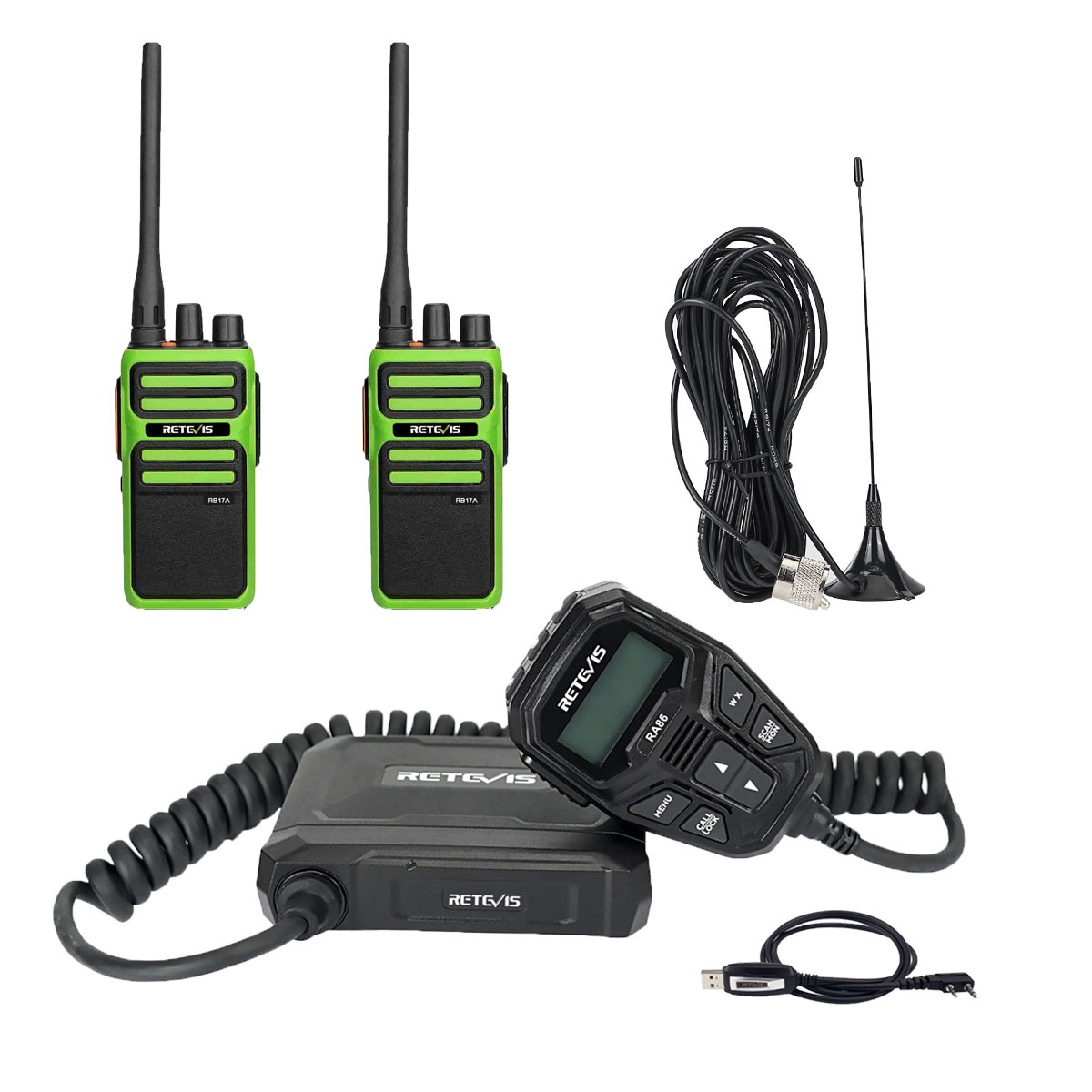

RA86 with RB17A camping GMRS radio bundle
The RA86 with RB17A camping GMRS radio bundle is a long range radio combo ideal for use on farms, ranches, camping, mountain climbing and exploring. It has noaa function and can be connected to a repeater to expand the call range. The bright color of RB17A is very obvious outdoors and improves safety.
Features：
Ready to use right out of the box, easy to operate
RA86 and RB17A both belong to GMRS frequency and can be connected directly without writing frequency. And fully compatible with other GMRS radios and RT97-RT97S GMRS repeater.
Complete set, saving time on selection
The set includes a 2 dbi antenna for direct connection to the RA86, two RB17A and programming cables. Very suitable for farms, ranches, camping, and mountain climbing.
Suitable for outdoor environments
RA86 comes with noaa function, which allows you to know the weather conditions in advance when outdoors so that you can modify your plan in time. RB17A has a one-button alarm function - remote/local alarm function, and the color is very bright and easy to identify outdoors to improve safety performance.
VOX
Both radios have the vox function. After the vox function is turned on, you can make calls in time without pressing PTT. The sound is very loud, and you can hear your companions clearly even in a noisy environment. No problem whether you are driving a tractor or driving on the road.
Package includes
1 x RB86 20W GMRS mobile radio
2 x RB17A 5W GMRS walkie talkie
1 x program cable for RB17A
1 x 2dbi antenna
1 x user manual
| overall parameters--RA86 | ||
| Modulation | FM | |
| Frequency Range | GMRS（462.5625-467.725） | |
| frequency error | ±500Hz | |
| Operating Voltage | 12.6-14.4V | |
| Antenna Impedance | 50Ω | |
| bandwidth | 12.5kHz/20kHz | |
| Working current | ≤3.3A Hi power | |
| ≤1.8A Lo power | ||
| Operating temperature | -30℃-+55℃ | |
| TX parameters | ||
| transmit power | ≥18W Hi power 4.5-6W Lo power |
|
| Spurious RF components | ≤-60dBC | ≤-13dbm |
| Transmit SNR | ≥35 | |
| modulation limit | ≤2.5KHZ（N） | |
| ≤5KHZ（W）@Repeater Channel | ||
| Adjacent power | ≤-65dBc | ≤-60dBc |
| Modulation Sensitivity | 5-15mV | |
| audio pre-emphasis | -3~-7@AF=500Hz | -6±3@AF=500Hz |
| 3-7@AF=2KHz | 6±3@AF=2KHz | |
| RX parameters | ||
| Receiver sensitivity | ≤-122m@SINAD=12dB | |
| audio output | 3.2V-4.2V@8R SPK | 3.2v-4.2v@8R SPK @AF=1KHz.FM Devation=1.5KHZ |
| reception distortion | ≤5.0% | ≤8% |
| Receive SNR | ≥40 | ≥36 |
| receive blocking | ≥80 | ≥75 |
| co-channel rejection | ≤-12 | |
| lane selectivity | ≥70 | |
| audio de-emphasis | 2~6@AF=500Hz | 6±3@AF=500Hz |
| -8~-3@AF=2KHz |
-6±3@AF=2KH z |
|
Antenna:
| Antenna ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS |
| Frequency Range:462 MHz | Length: 165 mm |
| Impedance: 50 V | Diameter of Chassis:φ39.5 mm |
| VSWR: ≤1.5 | connector: SL16-J |
| Gain: 2 dBi | Coaxial Cable: RG-174 |
| Polarization: Vertical | Length of Cable: 5 m |
| Radiation: Omni | |
| Maximum Power Input-watts: 50 W |
| General Specifications--RB17A | |
| Frequency Range | GMRS: TX: 462.5500-467.7250MHz RX:462.5500-462.7250MHz |
| Channel Capacity | 30 |
| Channel Spacing | 12.5KHz |
| Antenna Impedence | 50Ω |
| MIC Impedence | 2.2kΩ |
| Working Voltage | 7.4V DC |
| Size | 124(H)*58(W)*39(D)mm |
| Operating temperature | -30~+60°C |
| Frequency Stability | ±2.5×10-6 |
| net weight | 260g |
| Transmitter | |
| Carrier Frequency Tolerance | ±2.5×10-6 |
| Output Power | ≤5W |
| Modulation Sensitivity | 10±2mV |
| Modulation Distortion | <3% |
| Modulation Limit | 2.1 12.5K |
| Occupied Bandwidth | ≤15 kHz |
| Modulation Characteristic | ±3dB |
| Spurious Radiation | ≤1μW |
| Adjacent Channel Selectivity | ≤-65 dB |
| Transmitting SNR | ≥40 dB |
| Receiver | |
| Reference Sensitivity | -123dBm |
| Squelch Sensitivity | -122±2dBm |
| Audio Power | 1W |
| Audio Distortion | ≤3% |
| Modulation RX Bandwidth | ≥I±7.5kHzI |
| Audio Response | ≥+2dB, ≤-10dB |
| Co-channel Injection | ≥-8 dB |
| Block | ≥85 dB |
| Channel Selectivity | ≥65 dB |
| Receiving SNR | ≥45 dB |
