Retevis RA86 20W GMRS mobile tractor radio with antenna bundle
with Integrated Control Microphone, very fit for tractor communication, simple design, easy operate
Rugged and durable, it is the best two way radio for tractors, combines, UTV, Jeep. Offroad, etc.
GMRS repeater capable
FREE Shipping

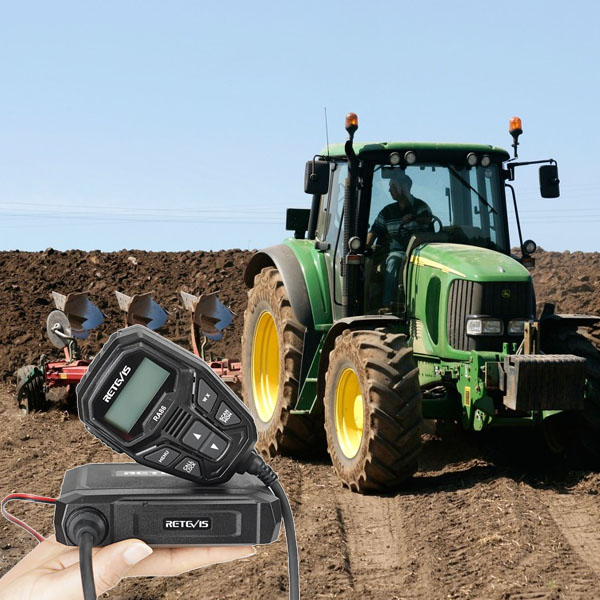

Retevis RA86 GMRS Mobile Tractor Radio with Antenna
Retevis RA86 GMRS mobile tractor radio with a short antenna, can use directly for farm tractors two way radio communication, supplies long range, stable, and clear calls for farm tractor drivers, the rugged and durable design, simple and easy use, make it the best two way radio for farm tractors, combines, and UTV,i it is also a great choice for jeeps, offroad and Overlanding.
Retevis RA86 GMRS Mobile Tractor Radio Bundle Features
- Two Year Warranty

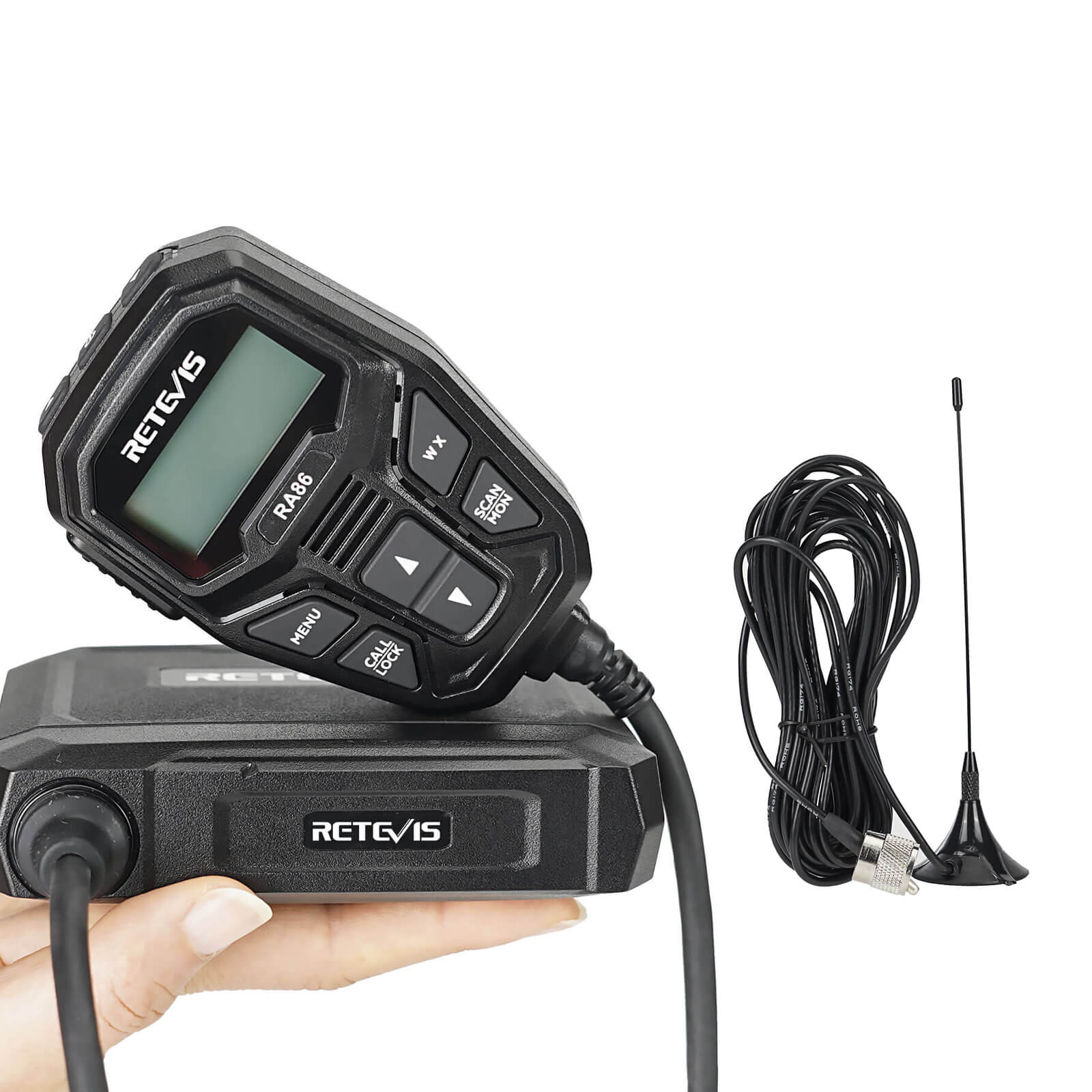

- Full 20-Watt Micro Mobile GMRS Radio, with an external magnetic mount 2 dB gain antenna for extended range
- Total 99 direct GMRS channels+8 gmrs repeater channels.
-
30 factory set GMRS Channels
- 8 GMRS repeater channels
- 66 preset blank channels for program
- 10 NOAA channels, NOAA Weather Alerts and Weather Scan: NOAA Weather Scan will automatically scan through 10 available weather (WX) band channels and locks onto the strongest weather channel to alert you of severe weather updates. NOAA Weather Alert will sound an alarm indicating that there is a risk of severe weather in your area.
- 260 CTCSS/DCS PRIVACY CODES: The privacy codes give you up to 5720 channel options to protect your conversations
- Fully Integrated Control Microphone and low profile hide away unit. Personalized backlight selection, clearer microphone for better call sound quality.
- Scan
- Monitor
- Squelch
- VOX
- Keypad lock
- Power Level Hi/Lo
- Bandwidth Settings
- TOT
- Call Alert Tone
- Repeater ON/OFF
- MIC Gain
- Backlight Settings
- LCD Brightness Settings
- Sleep Time Settings
- Extemal Speaker Jack
- Automatic Power On Function
- GMRS License Required
- FCC ID: 2A3OORA86
Package Includes
- 1X Retevis RA86 GMRS Mobile Tractor Radio
- 1X
Handheld Speaker Mic
- 1X Antenna
- 1X Car Charger with Fuse Holder
-
1X Screw Packs
-
1X Mobile Mounting Bracket
-
1X Microphone Bracket
- 1X User’s Manual
| overall parameters | ||
| Modulation | FM | |
| Frequency Range | GMRS（462.5625-467.725） | |
| frequency error | ±500Hz | |
| Operating Voltage | 12.6-14.4V | |
| Antenna Impedance | 50Ω | |
| bandwidth | 12.5kHz/20kHz | |
| Working current | ≤3.3A Hi power | |
| ≤1.8A Lo power | ||
| Operating temperature | -30℃-+55℃ | |
| TX parameters | ||
| transmit power | ≥18W Hi power 4.5-6W Lo power |
|
| Spurious RF components | ≤-60dBC | ≤-13dbm |
| Transmit SNR | ≥35 | |
| modulation limit | ≤2.5KHZ（N） | |
| ≤5KHZ（W）@Repeater Channel | ||
| Adjacent power | ≤-65dBc | ≤-60dBc |
| Modulation Sensitivity | 5-15mV | |
| audio pre-emphasis | -3~-7@AF=500Hz | -6±3@AF=500Hz |
| 3-7@AF=2KHz | 6±3@AF=2KHz | |
| RX parameters | ||
| Receiver sensitivity | ≤-122m@SINAD=12dB | |
| audio output | 3.2V-4.2V@8R SPK | 3.2v-4.2v@8R SPK @AF=1KHz.FM Devation=1.5KHZ |
| reception distortion | ≤5.0% | ≤8% |
| Receive SNR | ≥40 | ≥36 |
| receive blocking | ≥80 | ≥75 |
| co-channel rejection | ≤-12 | |
| lane selectivity | ≥70 | |
| audio de-emphasis | 2~6@AF=500Hz | 6±3@AF=500Hz |
| -8~-3@AF=2KHz |
-6±3@AF=2KH z |
|
Antenna:
| Antenna ELECTRICAL SPECIFICATIONS | MECHANICAL SPECIFICATIONS |
| Frequency Range:462 MHz | Length: 165 mm |
| Impedance: 50 V | Diameter of Chassis:φ39.5 mm |
| VSWR: ≤1.5 | connector: SL16-J |
| Gain: 2 dBi | Coaxial Cable: RG-174 |
| Polarization: Vertical | Length of Cable: 5 m |
| Radiation: Omni | |
| Maximum Power Input-watts: 50 W |
Retevis RA86 Brochure
Retevis RA86 Programming Software
Retevis RA86 English Manual
